HS0-1840ARH-Q Rad-Hard 16 Channel CMOS Analog Multiplexer with High-Z Analog Input Protection

only. Intersil Corporation reserves the right to make changes in circuit design and/or specifications at any time without notice. Accordingly, the reader is cautioned to verify that data sheets are current before placing orders. Information furnished by Intersil is believed to be accurate and reliab.

HS-1840ARH Data Sheet August 1999 File Number 4355.1 Rad-Hard 16 Channel CMOS Analog Multiplexer with High-Z Analog Input Protection The HS-1840ARH is a radiation hardened, monolithic 16 channel multiplexer constructed with the Intersil Rad-Hard Silicon Gate, bonded wafer, Dielectric Isolation process. It is designed to provide a high input impedance to the analog source if device power fails (open), or the analog signal voltage inadvertently exceeds the supply by up to ±35V, regardless of whet.

HS0-1840ARH-Q Features

* Electrically Screened to SMD # 5962-95630

* QML Qualiﬁed per MIL-PRF-38535 Requirements

* Pin-to-Pin for Intersil’s HS-1840RH and HS-1840/883S

* Improved Radiation Performance - Gamma Dose (γ) 3 x 105RAD(Si)

* Improved rDS(ON) Linearity

* Improved Ac

HS0-1840ARH-Q Datasheet (76.66 KB)

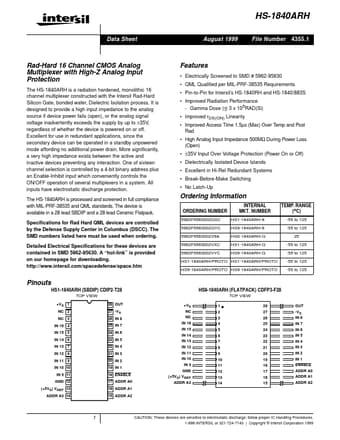

HS0-1840ARH-Q Datasheet Preview — Preview of HS0-1840ARH-Q PDF

Datasheet Details

Part number:

HS0-1840ARH-Q

Manufacturer:

Intersil Corporation

File Size:

76.66 KB

Description:

Rad-hard 16 channel cmos analog multiplexer with high-z analog input protection.
