HS1-139RH - Radiation Hardened Quad Voltage Comparator

Datasheet Summary

Description

only.

Intersil Corporation reserves the right to make changes in circuit design and/or specifications at any time without notice.

Accordingly, the reader is cautioned to verify that data sheets are current before placing orders.

Features

QML Qualiﬁed Per MIL-PRF-38535 Requirements.
Radiation Environment - Latch-up Free Under any Conditions - Total Dose (Max).
. . . 3 x 105 RAD(Si) - SEU LET Threshold.
20MeV/cm2/mg - Low Dose Rate Effects Immunity.
100V Output Voltage Withstand Capability.
ESD Protection to >3000V.
Differential Input Voltage Range Equal to the Supply Voltage.
Input Offset Voltage (VIO).

Intersil Corporation

📥 Download Datasheet

Datasheet Details

Part number	HS1-139RH
Manufacturer	Intersil Corporation
File Size	52.60 KB
Description	Radiation Hardened Quad Voltage Comparator
Datasheet	HS1-139RH Datasheet
Additional preview pages of the HS1-139RH datasheet.

📁 Similar Datasheet

HS1-82C37ARH-8 - Radiation Hardened CMOS High Performance Programmable DMA Controller (Harris Corporation)
HS1-82C37ARH-Q - Radiation Hardened CMOS High Performance Programmable DMA Controller (Harris Corporation)
HS1-82C37ARH-Sample - Radiation Hardened CMOS High Performance Programmable DMA Controller (Harris Corporation)
HS10 - Feed Sensor (Hog Slat)
HS100 - Crystal Clock Oscillators (NEL)
HS1010E - N-Channel MOSFET (Chengqi Semiconductor)
HS102M - Ceramic Capacitors (CDE)
HS103DR - DIN Rail Mount (Crydom)
HS103DR-D2490 - DIN Rail Mount (Crydom)
HS103DR-D53TP25D - DIN Rail Mount (Crydom)

Other Datasheets by Intersil Corporation

HS1-1412RH-Q - Radiation Hardened/ Quad/ High Speed/ Low Power/ Video Closed Loop Buffer
HS1-1825ARH - Radiation Hardened High-Speed/ Dual Output PWM
HS1-1825ARH-8 - Radiation Hardened High-Speed/ Dual Output PWM
HS1-1825ARH-Q - Radiation Hardened High-Speed/ Dual Output PWM
HS1-1840ARH - Radiation Hardened 16 Channel CMOS Analog Multiplexer with High-Z Analog Input Protection
HS1-1840ARH - Rad-Hard 16 Channel CMOS Analog Multiplexer with High-Z Analog Input Protection
HS1-1840ARH-8 - Rad-Hard 16 Channel CMOS Analog Multiplexer with High-Z Analog Input Protection
HS1-1840ARH-Q - Rad-Hard 16 Channel CMOS Analog Multiplexer with High-Z Analog Input Protection

Full PDF Text Transcription

Click to expand full text

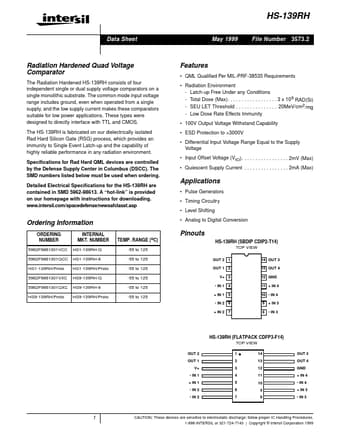

HS-139RH Data Sheet May 1999 File Number 3573.2 Radiation Hardened Quad Voltage Comparator The Radiation Hardened HS-139RH consists of four independent single or dual supply voltage comparators on a single monolithic substrate. The common mode input voltage range includes ground, even when operated from a single supply, and the low supply current makes these comparators suitable for low power applications. These types were designed to directly interface with TTL and CMOS. The HS-139RH is fabricated on our dielectrically isolated Rad Hard Silicon Gate (RSG) process, which provides an immunity to Single Event Latch-up and the capability of highly reliable performance in any radiation environment.
