HS1-1412RH-Q - Radiation Hardened/ Quad/ High Speed/ Low Power/ Video Closed Loop Buffer

Datasheet Summary

Features

Electrically Screened to SMD # 5962-96834.
QML Qualiﬁed per MIL-PRF-38535 Requirements.
MIL-PRF-38535 Class V Compliant.
User Programmable For Closed-Loop Gains of +1, -1 or +2 Without Use of External Resistors.
Standard Operational Ampliﬁer Pinout.
Low Supply Current.
. . 5.9mA/Op Amp (Typ).
Excellent Gain Accuracy.
0.99V/V (Typ).
Wide -3dB Bandwidth.
.

Intersil Corporation

📥 Download Datasheet

Datasheet Details

Part number	HS1-1412RH-Q
Manufacturer	Intersil Corporation
File Size	174.24 KB
Description	Radiation Hardened/ Quad/ High Speed/ Low Power/ Video Closed Loop Buffer
Datasheet	HS1-1412RH-Q Datasheet
Additional preview pages of the HS1-1412RH-Q datasheet.

📁 Similar Datasheet

HS1-82C37ARH-8 - Radiation Hardened CMOS High Performance Programmable DMA Controller (Harris Corporation)
HS1-82C37ARH-Q - Radiation Hardened CMOS High Performance Programmable DMA Controller (Harris Corporation)
HS1-82C37ARH-Sample - Radiation Hardened CMOS High Performance Programmable DMA Controller (Harris Corporation)
HS10 - Feed Sensor (Hog Slat)
HS100 - Crystal Clock Oscillators (NEL)
HS1010E - N-Channel MOSFET (Chengqi Semiconductor)
HS102M - Ceramic Capacitors (CDE)
HS103DR - DIN Rail Mount (Crydom)
HS103DR-D2490 - DIN Rail Mount (Crydom)
HS103DR-D53TP25D - DIN Rail Mount (Crydom)

Other Datasheets by Intersil Corporation

HS1-139RH - Radiation Hardened Quad Voltage Comparator
HS1-1825ARH - Radiation Hardened High-Speed/ Dual Output PWM
HS1-1825ARH-8 - Radiation Hardened High-Speed/ Dual Output PWM
HS1-1825ARH-Q - Radiation Hardened High-Speed/ Dual Output PWM
HS1-1840ARH - Radiation Hardened 16 Channel CMOS Analog Multiplexer with High-Z Analog Input Protection
HS1-1840ARH - Rad-Hard 16 Channel CMOS Analog Multiplexer with High-Z Analog Input Protection
HS1-1840ARH-8 - Rad-Hard 16 Channel CMOS Analog Multiplexer with High-Z Analog Input Protection
HS1-1840ARH-Q - Rad-Hard 16 Channel CMOS Analog Multiplexer with High-Z Analog Input Protection

Full PDF Text Transcription

Click to expand full text

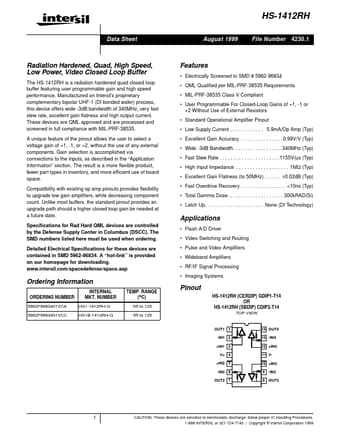

HS-1412RH Data Sheet August 1999 File Number 4230.1 Radiation Hardened, Quad, High Speed, Low Power, Video Closed Loop Buffer The HS-1412RH is a radiation hardened quad closed loop buffer featuring user programmable gain and high speed performance. Manufactured on Intersil’s proprietary complementary bipolar UHF-1 (DI bonded wafer) process, this device offers wide -3dB bandwidth of 340MHz, very fast slew rate, excellent gain ﬂatness and high output current. These devices are QML approved and are processed and screened in full compliance with MIL-PRF-38535. A unique feature of the pinout allows the user to select a voltage gain of +1, -1, or +2, without the use of any external components.
