HS1-82C37ARH

The HS1-82C37ARH is Radiation Hardened CMOS High Performance Programmable DMA Controller designed by Intersil Corporation.

Product Overview

Intersil Corporation

📥 Download Datasheet

Datasheet Details

Part number	HS1-82C37ARH
Manufacturer	Intersil Corporation
File Size	195.66 KB
Description	Radiation Hardened CMOS High Performance Programmable DMA Controller
Datasheet	HS1-82C37ARH_IntersilCorporation.pdf

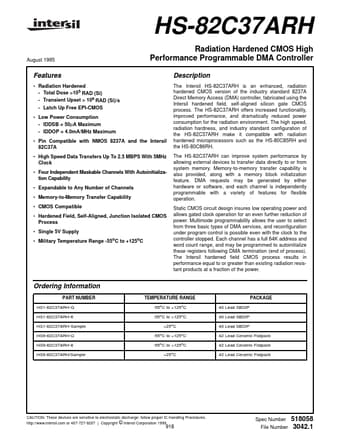

Additional preview pages of the HS1-82C37ARH datasheet.

Product details

Description

The Intersil HS-82C37ARH is an enhanced, radiation hardened CMOS version of the industry standard 8237A Direct Memory Access (DMA) controller, fabricated using the Intersil hardened ﬁeld, self-aligned silicon gate CMOS process.

Features

for ﬂexible operation. Static CMOS circuit design insures low operating power and allows gated clock operation for an even further reduction of power. Multimode programmability allows the user to select from three basic types of DMA services, and reconﬁguration under program control is possible even with the clock to the controller stopped. Each channel has a full 64K address and word count range, and may be programmed to autoinitialize these registers following DMA termination (end of process).
