HS1-82C54RH

The HS1-82C54RH is Radiation Hardened CMOS Programmable Interval Timer designed by Intersil Corporation.

Product Overview

Intersil Corporation

Datasheet Details

Part number	HS1-82C54RH
Manufacturer	Intersil Corporation
File Size	171.56 KB
Description	Radiation Hardened CMOS Programmable Interval Timer
Datasheet	HS1-82C54RH_IntersilCorporation.pdf

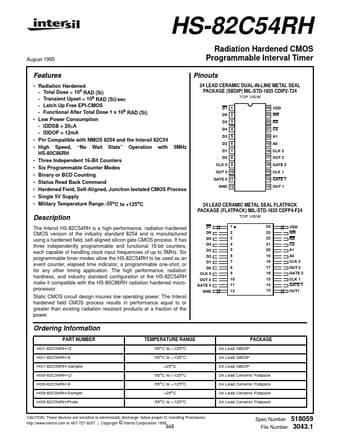

Additional preview pages of the HS1-82C54RH datasheet.

Product details

Description

The Intersil HS-82C54RH is a high performance, radiation hardened CMOS version of the industry standard 8254 and is manufactured using a hardened ﬁeld, self-aligned silicon gate CMOS process.

Features

Radiation Hardened - Total Dose > 105 RAD (Si) - Transient Upset > 108 RAD (Si)/sec - Latch Up Free EPI-CMOS - Functional After Total Dose 1 x 106 RAD (Si).
Low Power Consumption - IDDSB = 20µA - IDDOP = 12mA.
Pin Compatible with NMOS 8254 and the Intersil 82C54.
High Speed, “No Wait State” Operation with 5MHz HS-80C86RH.
Three Independent 16-Bit Counters.
Six Programmable Counter Modes.
Binary or BCD Counting.
Status Read.
