HS1-82C54RH-Q Radiation Hardened CMOS Programmable Interval Timer

The Intersil HS-82C54RH is a high performance, radiation hardened CMOS version of the industry standard 8254 and is manufactured using a hardened ﬁeld, self-aligned silicon gate CMOS process. It has three independently programmable and functional 16-bit counters, each capable of handling clock input.

HS1-82C54RH-Q Features

* Radiation Hardened - Total Dose > 105 RAD (Si) - Transient Upset > 108 RAD (Si)/sec - Latch Up Free EPI-CMOS - Functional After Total Dose 1 x 106 RAD (Si)

* Low Power Consumption - IDDSB = 20µA - IDDOP = 12mA

* Pin Compatible with NMOS 8254 and the Intersil 82C54

HS1-82C54RH-Q Datasheet (171.56 KB)

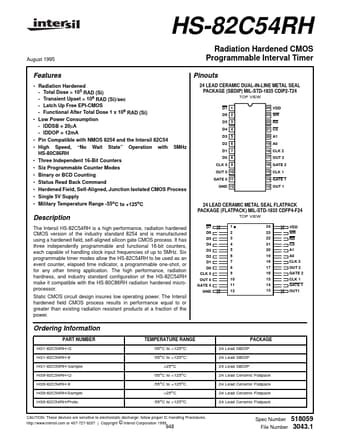

HS1-82C54RH-Q Datasheet Preview — Preview of HS1-82C54RH-Q PDF

Datasheet Details

Part number:

HS1-82C54RH-Q

Manufacturer:

Intersil Corporation

File Size:

171.56 KB

Description:

Radiation hardened cmos programmable interval timer.
