ICL828

Switched-Capacitor Voltage Inverter

ICL828 Features

* 5-Lead SOT23-5 Package

* 99% Open Circuit Voltage Conversion Efficiency

* Inverts Input Supply Voltage

* High Power Supply Efficiency

* Input Voltage Range . . . . . . . . . . . . . . . . . . +1.5V to +5.5V

* May be Cascaded to Increase Output Voltage

ICL828 General Description

The ICL828 contains all the necessary circuitry to complete a negative converter, utilizing two external inexpensive 10µF polarized electrolytic capacitor. The mode of operation of the device may be understood by considering Figure 10 which shows an idealized negative voltage converter. Capacitor C1.

ICL828 Datasheet (104.26 KB)

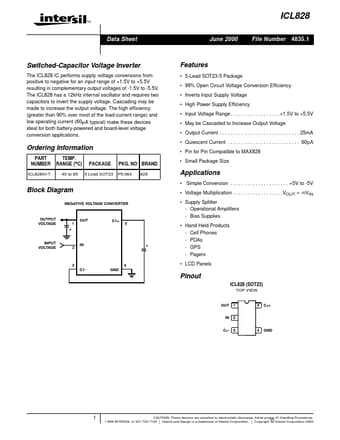

Preview of ICL828 PDF

Datasheet Details

Part number:

ICL828

Manufacturer:

Intersil Corporation

File Size:

104.26 KB

Description:

Switched-capacitor voltage inverter.
www.DataSheet4U.com ICL828 TM Data Sheet June 2000 File Number 4835.1 Switched-Capacitor Voltage Inverter The ICL828 IC performs supply voltage .
