ICM7211A - 4-Digit LCD Display Driver

Datasheet Summary

Description

The ICM7211A (LCD) device constitutes a family of non-multiplexed four-digit seven-segment CMOS display decoderdrivers.

The ICM7211A devices are configured to drive conventional LCD displays by providing a complete RC oscillator, divider chain, backplane driver, and 28 segment outputs.

Features

  • Four Digit Non-Multiplexed 7 Segment LCD Display Outputs with Backplane Driver.
  • Complete Onboard RC Oscillator to Generate Backplane Frequency.
  • Backplane Input/Output Allows Simple Synchronization of Slave-Devices to a Master.
  • ICM7211A Devices Provide Separate Digit Select Inputs to Accept Multiplexed BCD Input (Pinout and Functionally Compatible with Siliconix DF411).
  • ICM7211AM Devices Provide Data and Digit Address Latches Controlled by Chip Select.

📥 Download Datasheet

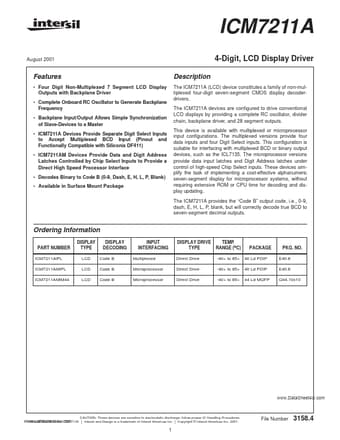

Datasheet preview – ICM7211A
