ICM7211AM - 4-Digit LCD Display Driver

Datasheet Summary

Description

Digit Address Bit 1 (LSB) Digit Address Bit 2 (MSB) Chip Select 1 Chip Select 2 DIP TERMINAL 31 32 CONDITIONS VDD = Logical One VSS = Logical Zero VDD = Logical One VSS = Logical Zero VDD = Inactive VSS = Active VDD = Inactive VSS = Active FUNCTION DA1 and DA2 serve as a 2-bit Digit Address Input DA

Features

  • Four Digit Non-Multiplexed 7 Segment LCD Display Outputs with Backplane Driver.
  • Complete Onboard RC Oscillator to Generate Backplane Frequency.
  • Backplane Input/Output Allows Simple Synchronization of Slave-Devices to a Master.
  • Provides Data and Digit Address Latches Controlled by Chip Select Inputs to Provide a Direct High Speed Processor Interface.
  • Decodes Binary to Code B (0-9, Dash, E, H, L, P, Blank) Ordering Information PART NUMBER ICM7211AMlPL.

📥 Download Datasheet

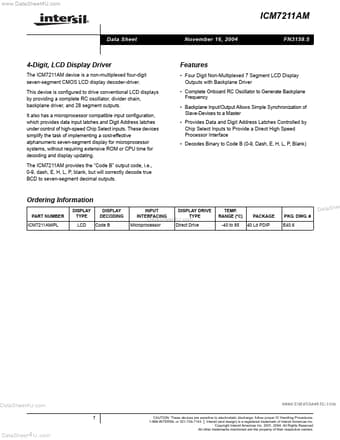

Datasheet preview – ICM7211AM

Datasheet Details

Part number ICM7211AM
Manufacturer Intersil Corporation
File Size 440.09 KB
Description 4-Digit LCD Display Driver
Datasheet download datasheet ICM7211AM Datasheet
Additional preview pages of the ICM7211AM datasheet.

📁 Similar Datasheet

  • ICM7211AM - 4-Digit LCD Display Driver (Renesas)
  • ICM7211 - Four Digit Display Decoder/Drivers (Maxim Integrated Products)
  • ICM7211 - 4-Digit LCD Display Driver (Harris Semiconductor)
  • ICM7212 - Four Digit Display Decoder/Drivers (Maxim Integrated Products)
  • ICM7212 - 4-Digit LCD Display Driver (Harris Semiconductor)
  • ICM7216B - Frequency Counters/Timers (Renesas)
  • ICM7216D - Frequency Counters/Timers (Renesas)
  • ICM7217 - 4-Digit LED Display / Programmable Up/Down Counter (Intersil)
  • ICM7217 - 4 Digit (LED) Presettable Up/Down Counter (Maxim)
  • ICM7217 - 4-Digit LED Display / Programmable Up/Down Counter (Renesas)
Other Datasheets by Intersil Corporation
  • ICM7211A - 4-Digit LCD Display Driver
  • ICM7213 - One Second/One Minute Timebase Generator
  • ICM7216A - (ICM7216x) 8-Digit / Multi-Function / Frequency Counters/Timers
  • ICM7216B - (ICM7216x) 8-Digit / Multi-Function / Frequency Counters/Timers
  • ICM7216D - (ICM7216x) 8-Digit / Multi-Function / Frequency Counters/Timers
  • ICM7218 - 8-Digit LED Microprocessor-Compatible Multiplexed Display Decoder Driver
  • ICM7206 - CMOS Touch Tone Encoder
  • ICM7224 - 41/2 Digit LCD Display Counter

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com ® ICM7211AM Data Sheet November 16, 2004 FN3158.5 4-Digit, LCD Display Driver The ICM7211AM device is a non-multiplexed four-digit seven-segment CMOS LCD display decoder-driver. This device is configured to drive conventional LCD displays by providing a complete RC oscillator, divider chain, backplane driver, and 28 segment outputs. It also has a microprocessor compatible input configuration, which provides data input latches and Digit Address latches under control of high-speed Chip Select inputs. These devices simplify the task of implementing a cost-effective alphanumeric seven-segment display for microprocessor systems, without requiring extensive ROM or CPU time for decoding and display updating. The ICM7211AM provides the “Code B” output code, i.e.
