IS82C54Z

CMOS Programmable Interval Timer

IS82C54Z Features

* 8MHz to 12MHz Clock Input Frequency

* Compatible with NMOS 8254 - Enhanced Version of NMOS 8253

* Three Independent 16-Bit Counters

* Six Programmable Counter Modes

* Status Read Back Command

* Binary or BCD Counting

* Fully TTL Compatible

IS82C54Z Datasheet (605.66 KB)

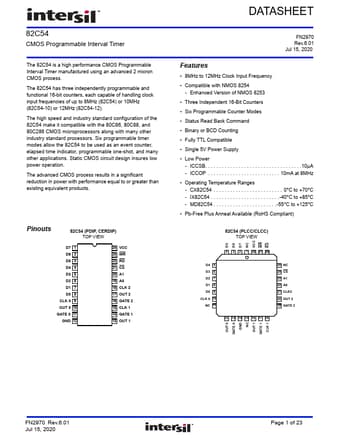

Preview of IS82C54Z PDF

Datasheet Details

Part number:

IS82C54Z

Manufacturer:

Intersil Corporation

File Size:

605.66 KB

Description:

Cmos programmable interval timer.
82C54 CMOS Programmable Interval Timer The 82C54 is a high performance CMOS Programmable Interval Timer manufactured using an advanced 2 micron CMOS p.
