ISL3084

VCO

ISL3084 Features

* Single Supply . . . . . . . . . . . . . . . . . . . . . . . . . 2.7V to 3.3V

* Frequency . . . . . . . . . . . . . . . . . . . . . . . . . 4.9GHz typical

* Fully Integrated/No External Varactors or Resonators Required

* Isolation Output Buffer/Reduced Load Pulling

ISL3084 General Description

PIN NUMBER 1 2, 6, 12 5 10 11 15 16 3, 4, 7, 8, 9, 13, 14 Paddle NAME VTUNE VCC PE OSCOSC+ FILTER CAP1 FILTER CAP2 GND N/A DESCRIPTION Input tuning voltage from loop filter. Sensitivity to external injected noise to KVCO. Careful noise-free layout recommended. Supply pins. Requires high quality cap.

ISL3084 Datasheet (142.26 KB)

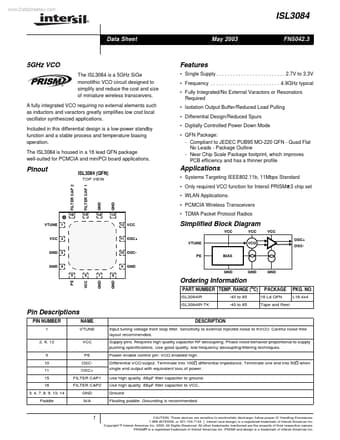

Preview of ISL3084 PDF

Datasheet Details

Part number:

ISL3084

Manufacturer:

Intersil Corporation

File Size:

142.26 KB

Description:

Vco.
www.DataSheet4U.com ® ISL3084 Data Sheet May 2003 FN5042.3 5GHz VCO The ISL3084 is a 5GHz SiGe monolithic VCO circuit designed to simplify and reduc.
