ISL3092 - 11GHz VCO

Product Overview

Intersil Corporation

📥 Download Datasheet

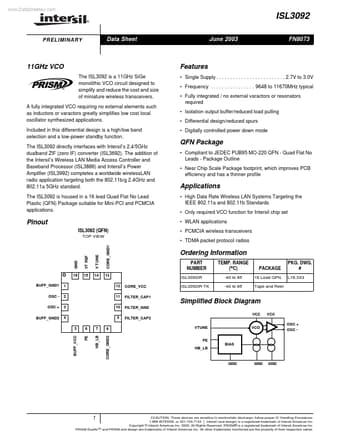

ISL3092 11GHz VCO by Intersil Corporation - Datasheet Preview — Datasheet preview – ISL3092

Datasheet Details

Part number	ISL3092
Manufacturer	Intersil Corporation
File Size	50.17 KB
Description	11GHz VCO
Datasheet	ISL3092 Datasheet
Additional preview pages of the ISL3092 datasheet.

Product details

Features

Single Supply.
2.7V to 3.0V.
Frequency.
. 9648 to 11670MHz typical.
Fully integrated / no external varactors or resonators required.
Isolation output buffer/reduced load pulling.
Differential design/reduced spurs.
Digitally controlled power down mode QFN Package.
Compliant to JEDEC PUB95 MO-220 QFN - Quad Flat No Leads - Package Outline.
Near Chip Scale.
