ISL3686A - Direct Down Conversion Transceiver

Product Overview

Intersil Corporation

📥 Download Datasheet

ISL3686A Direct Down Conversion Transceiver by Intersil Corporation - Datasheet Preview — Datasheet preview – ISL3686A

Datasheet Details

Part number	ISL3686A
Manufacturer	Intersil Corporation
File Size	68.35 KB
Description	Direct Down Conversion Transceiver
Datasheet	ISL3686A Datasheet

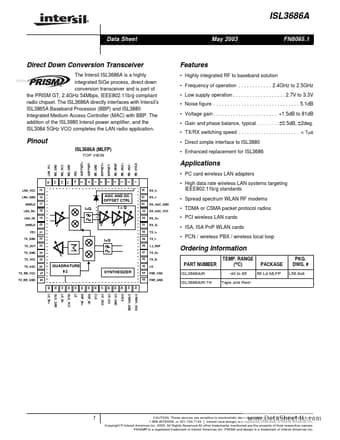

Additional preview pages of the ISL3686A datasheet.

Product details

Features

Highly integrated RF to baseband solution.
Frequency of operation.
. . 2.4GHz to 2.5GHz.
Low supply operation.
. . . . 2.7V to 3.3V.
Noise figure.
. 5.1dB.
Voltage gain.
. . . +1.5dB to 81dB.
Gain and phase balance, typical.
. . . . ±0.5dB, ±2deg.
TX/RX switching speed.
