ISL43L410 DPDT Analog Switch

PIN V+ FUNCTION System Power Supply Input (+1.65V to +3.6V) Ground Connection Digital Control Input. Connect to GND for Normal Operation. Connect to V+ to turn all switches off. Address Input Pin Analog Switch Common Pin Analog Switch Normally Open Pin Analog Switch Normally Closed Pin NOTE: 1. Sw.
® ISL43L410 Data Sheet July 28, 2006 FN6090.2 Ultra Low ON-Resistance, Low Voltage, Single Supply, DPDT Analog Switch The Intersil ISL43L410 device is a low ON-resistance, low voltage, bidirectional, double-pole/double-throw (DPDT) analog switch designed to operate from a single +1.65V to +3.6V supply. It is equipped with an inhibit pin to simultaneously open all signal paths. Targeted applications include battery powered equipment that benefit from low RON (0.25Ω) and fast switching speeds (t.

ISL43L410_IntersilCorporation.pdf

Preview of ISL43L410 PDF

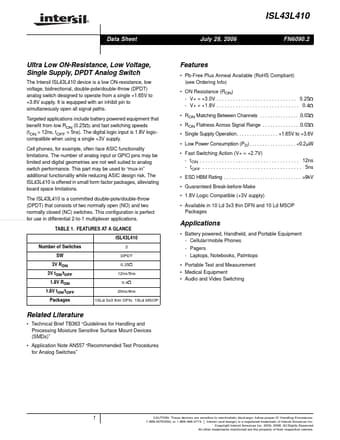

ISL43L410 Datasheet Preview Page 2 ISL43L410 Datasheet Preview Page 3
