ISL43231

Low-Voltage/ Single and Dual Supply/ Triple SPDT Analog Switch

ISL43231 Features

* AT A GLANCE CONFIGURATION ±5V RON ±5V tON/tOFF 12V RON 12V tON/tOFF 5V RON 5V tON/tOFF 3.3V RON 3.3V tON/tOFF Package TRIPLE SPDT 39Ω 32ns/18ns 32Ω 23ns/15ns 65Ω 38ns/19ns 125Ω 70ns/32ns 20 Ld 4x4 QFN Features

* Fully Specified at 3.3V, 5V, ±5V, and 12V Supplies for 10% Tolerances

ISL43231 General Description

PIN V+ VGND EN EN LE COM NO NC ADD N.C. FUNCTION Positive Power Supply Input Negative Power Supply Input. Connect to GND for Single Supply Configurations. Ground Connection Digital Control Input. Connect to GND for Normal Operation. Connect to V+ to turn all switches off. Digital Control Input. Con.

ISL43231 Datasheet (537.40 KB)

Preview of ISL43231 PDF

Datasheet Details

Part number:

ISL43231

Manufacturer:

Intersil Corporation

File Size:

537.40 KB

Description:

Low-voltage/ single and dual supply/ triple spdt analog switch.
® ISL43231 Data Sheet September 2003 FN6054 Low-Voltage, Single and Dual Supply, Triple SPDT Analog Switch The Intersil ISL43231 device is a precisi.

📁 Related Datasheet

ISL43210 Single SPDT Analog Switch (Renesas)

ISL43210A Single SPDT Analog Switch (Renesas)

ISL43240 High Performance Analog Switch (Renesas)

ISL43110 High Performance Analog Switches (Renesas)

ISL43111 High Performance Analog Switches (Renesas)

ISL43112 High Performance Analog Switches (Renesas)

ISL43113 High Performance Analog Switches (Renesas)

ISL43120 Dual SPST Analog Switches (Renesas)

ISL43121 Dual SPST Analog Switches (Renesas)

ISL43122 Dual SPST Analog Switches (Renesas)

TAGS

ISL43231 Low-Voltage Single and Dual Supply Triple SPDT Analog Switch Intersil Corporation

Image Gallery

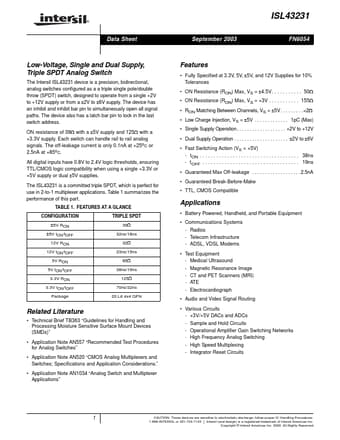

ISL43231 Datasheet Preview Page 2 ISL43231 Datasheet Preview Page 3
