ISL5929, ISL - Dual 14-Bit/ +3.3V/ 130/210MSPS/ CommLink TM High Speed D/A Converter

ISL5929 Description

TM ISL5929 Data Sheet February 2002 FN6021.1 Dual 14-Bit, +3.3V, 130/210+MSPS, CommLinkTM High Speed D/A Converter The ISL5929 is a dual 14-bit, 130.
PIN NO.

ISL5929 Features

* Speed Grades
* . 130M and 210+MSPS
* Low Power
* 233mW with 20mA Output at 130MSPS
* Adjustable Full Scale Output Current
* 2mA to 20mA
* Guaranteed Gain Matching < 0.14dB
* +3.3V Power Supply
* 3V LVCMOS Compat

ISL5929 Applications

* Cellular Infrastructure - Single or Multi-Carrier: IS-136, IS-95, GSM, EDGE, CDMA2000, WCDMA, TDS-CDMA
* BWA Infrastructure
* Quadrature Transmit with IF Range 0
* 80MHz Evaluation Platform Pinout ISL5929 (LQFP) TOP VIEW ID13(MSB) QD0 (LSB) QD1
* Medical/Te

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ISL5929, ISL. Please refer to the document for exact specifications by model.

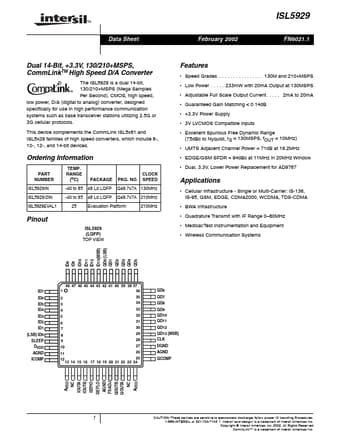

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ISL5929, ISL
Manufacturer
Intersil Corporation
File Size
844.80 KB
Datasheet
ISL-5929.pdf
Description
Dual 14-Bit/ +3.3V/ 130/210MSPS/ CommLink TM High Speed D/A Converter
Note
This datasheet PDF includes multiple part numbers: ISL5929, ISL.
Please refer to the document for exact specifications by model.
