MUR3040PT Ultrafast Dual Diodes

only. Intersil Corporation reserves the right to make changes in circuit design and/or specifications at any time without notice. Accordingly, the reader is cautioned to verify that data sheets are current before placing orders. Information furnished by Intersil is believed to be accurate and reliab.

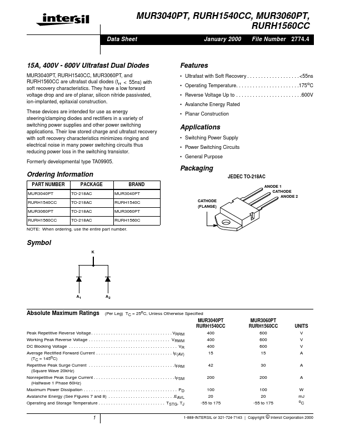

MUR3040PT, RURH1540CC, MUR3060PT, RURH1560CC Data Sheet January 2000 File Number 2774.4 15A, 400V - 600V Ultrafast Dual Diodes MUR3040PT, RURH1540CC, MUR3060PT, and RURH1560CC are ultrafast dual diodes (trr < 55ns) with soft recovery characteristics. They have a low forward voltage drop and are of planar, silicon nitride passivated, ion-implanted, epitaxial construction. These devices are intended for use as energy steering/clamping diodes and rectiﬁers in a variety of switching power supplies .
