X40034, X40030 - Triple Voltage Monitor

Intersil Corporation

X40034 Datasheet Preview — This datasheet PDF includes multiple part numbers: X40034, X40030. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	X40034, X40030
Manufacturer	Intersil Corporation
File Size	370.55 KB
Description	Triple Voltage Monitor

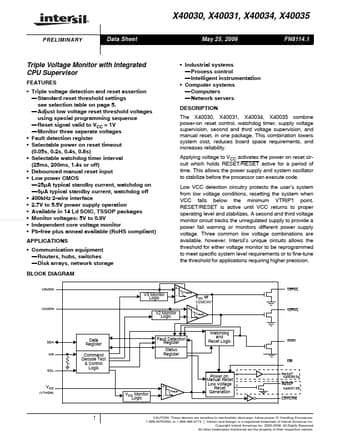

Datasheet	X40030_IntersilCorporation.pdf
Note	This datasheet PDF includes multiple part numbers: X40034, X40030. Please refer to the document for exact specifications by model.

X40034 Product details

Description

The X40030, X40031, X40034, X40035 combine power-on reset control, watchdog timer, supply voltage supervision, second and third voltage supervision, and manual reset, in one package.

Features

Triple voltage detection and reset assertion.
Standard reset threshold settings see selection table on page 5.
Adjust low voltage reset threshold voltages using special programming sequence.
Reset signal valid to VCC = 1V.
Monitor three seperate voltages.
Fault detection register.
Selectable power on reset timeout (0.05s, 0.2s, 0.4s, 0.8s).
Selectable watchdog timer interval (25ms, 200ms, 1.4s or off).
Debounced manua.
