X40010, X40 Datasheet - Xicor

X40010 Dual Voltage Monitor with Integrated CPU Supervisor

The X40010/11/14/15 combines power-on reset control, watchdog timer, supply voltage supervision, and secondary voltage supervision, in one package. This combination lowers system cost, reduces board space requirements, and increases reliability. Applying voltage to VCC activates the power on reset c.

X40010 Features

* Monitor Voltages: 5V to 0.9V

* Independent Core Voltage Monitor Preliminary Datasheet X40010/X40011/X40014/X40015 Dual Voltage Monitor with Integrated CPU Supervisor FEATURES

* Dual voltage detection and reset assertion

* Standard reset threshold settings See Selec

X40-01.pdf

This datasheet PDF includes multiple part numbers: X40010, X40. Please refer to the document for exact specifications by model.

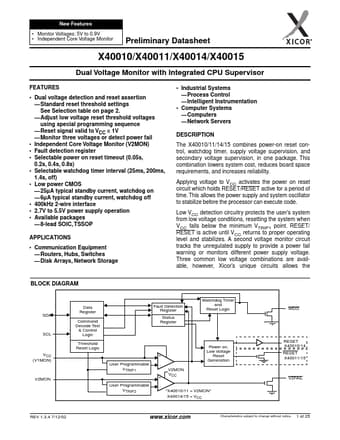

X40010 Datasheet Preview Page 2 X40010 Datasheet Preview Page 3

Datasheet Details

Part number:

X40010, X40

Manufacturer:

Xicor

File Size:

124.12 KB

Description:

Dual voltage monitor with integrated cpu supervisor.

Note:

This datasheet PDF includes multiple part numbers: X40010, X40.
Please refer to the document for exact specifications by model.
