X5325, X5323, (X5323 / X5325) CPU Supervisor with 32Kb SPI EEPROM

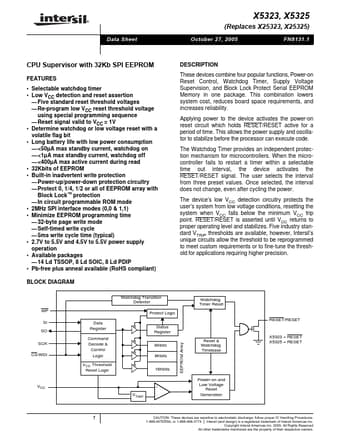

® X5323, X5325 (Replaces X25323, X25325) Data Sheet October 27, 2005 FN8131.1 CPU Supervisor with 32Kb SPI EEPROM .
These devices combine four popular functions, Power-on Reset Control, Watchdog Timer, Supply Voltage Supervision, and Block Lock Protect Serial EEPROM.

datasheet Preview Page 1 from Datasheet4u.com

X5323_IntersilCorporation.pdf

X5325 Datasheet Preview — This datasheet PDF includes multiple part numbers: X5325, X5323. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

X5325, X5323

Manufacturer:

Intersil Corporation

File Size:

360.46 KB

Description:

(X5323 / X5325) CPU Supervisor with 32Kb SPI EEPROM

Note:

This datasheet PDF includes multiple part numbers: X5325, X5323.
Please refer to the document for exact specifications by model.

Features

* Selectable watchdog timer
* Low VCC detection and reset assertion
* Five standard reset threshold voltages
* Re-program low VCC reset threshold voltage using special programming sequence
* Reset signal valid to VCC = 1V
* Determine watchdog or low volta

Applications

* requiring higher precision. Watchdog Timer Reset RESET/RESET Status Register 8Kbits 8Kbits 16Kbits EEPROM Array Reset & Watchdog Timebase X5323 = RESET X5325 = RESET VCC VTRIP + - Power-on and Low Voltage Reset Generation 1 CAUTION: These devices are sensitive to electrostatic discharge; foll
