X5328 Datasheet - Intersil Corporation

(X5328 / X5329) CPU Supervisor with 32Kbit SPI EEPROM

X5328 Features

* Low VCC detection and reset assertion

* Five standard reset threshold voltages

* Re-program low VCC reset threshold voltage using special programming sequence

* Reset signal valid to VCC = 1V

* Long battery life with low power consumption

X5328 General Description

These devices combine three popular functions, Poweron Reset Control, Supply Voltage Supervision, and Block Lock Protect Serial EEPROM Memory in one package. This combination lowers system cost, reduces board space requirements, and increases reliability. Applying power to the device activates the p.

X5328 Datasheet (340.91 KB)

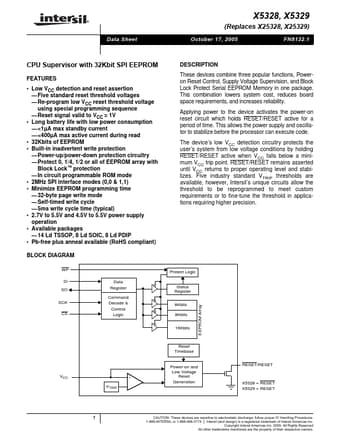

X5328 Datasheet Preview — Preview of X5328 PDF

Datasheet Details

Part number:

X5328

Manufacturer:

Intersil Corporation

File Size:

340.91 KB

Description:

(x5328 / x5329) cpu supervisor with 32kbit spi eeprom.
