CA3160A, CA3160 4MHz / BiMOS Operational Amplifier with MOSFET Input/CMOS Output

CA3160A Description

CA3160, CA3160A Data Sheet September 1998 File Number 976.3 4MHz, BiMOS Operational Amplifier with MOSFET Input/CMOS Output The CA3160A and CA3160 are.
Refer to the Block Diagram of the CA3160 series CMOS Operational Amplifiers.

CA3160A Features

* MOSFET Input Stage Provides: - Very High ZI = 1.5TΩ (1.5 x 1012Ω) (Typ) - Very Low II
* . . . 5pA (Typ) at 15V Operation
* . . . 2pA (Typ) at 5V Operation
* Common-Mode Input Voltage Range Includes Negative Supply Rail; Input Termin

CA3160A Applications

* A complementary symmetry MOS (CMOS) transistor-pair, capable of swinging the output voltage to within 10mV of either supply voltage terminal (at very high values of load impedance), is employed as the output circuit. The CA3160 Series circuits operate at supply voltages ranging from 5V to 16V, or ±

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: CA3160A, CA3160. Please refer to the document for exact specifications by model.

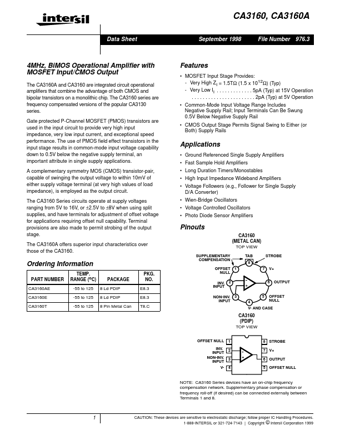

datasheet Preview Page 2 datasheet Preview Page 3
