EL4431

Video Instrumentation Amplifier

Intersil

EL4431 Features

* Fully differential inputs and feedback

* Differential input range of ±2V

* Common-mode range of ±12V

* High CMRR at 4MHz of 70dB

* Stable at gains of 1, 2

* Calibrated and clean input clipping

* EL4430

* 80MHz @ G = 1

* EL4431

EL4431 General Description

MIN TYP MAX VDIFF Differential input voltage (VCM = 0) Clipping 0.1% nonlinearity 2.0 2.3 1.8 VCM VOS IB IOS RIN CMRR Common-mode range (VDIFF = 0) Input offset voltage VS = ±5V VS = ±15V Input bias current (IN+, IN-, REF, and FB terminals) Input offset current between IN+ and IN- and bet.

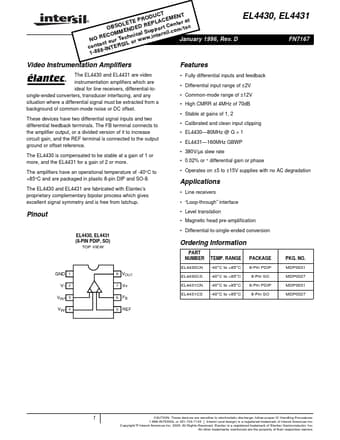

EL4431 Datasheet (181.86 KB)

EL4431 Datasheet Preview — Preview of EL4431 PDF

Datasheet Details

Part number:

EL4431

Manufacturer:

Intersil

File Size:

181.86 KB

Description:

Video instrumentation amplifier.
EL4430, EL4431®cN1o-On8t8aR8cE-tIDCNOoOTaBuEtMSraROTMSSeLEchIELNheTnDoeEirtEcPwaDRlwRSOwEuD.pPiUnpLtCoAeTrrCtsEiCl.MecnoEtmNeJTr/atasntcuary 1996, Rev.
