FRF9150R

P-Channel Power MOSFET

Intersil

FRF9150R Features

* 23A, -100V, rDS(ON) = 0.140Ω

* Second Generation Rad Hard MOSFET Results From New Design Concepts

* Gamma Meets Pre-RAD Speciﬁcations to 100K RAD (Si) Deﬁned End Point Specs at 300K RAD (Si) and 1000K RAD (Si) Performance Permits Limited Use to 3000K RAD (Si) Survives 3E9 R

FRF9150R General Description

Intersil Corporation has designed a series of SECOND GENERATION hardened power MOSFETs of both N and P channel enhancement types with ratings from 100V to 500V, 1A to 60A, and on resistance as low as 25mΩ. Total dose hardness is offered at 100K RAD (Si) and 1000K RAD (Si) with neutron hardness rangi.

FRF9150R Datasheet (49.12 KB)

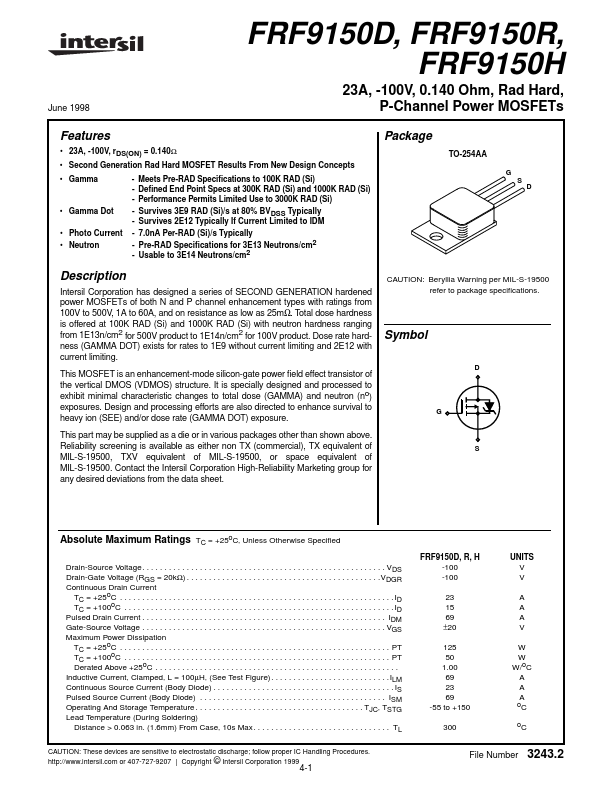

FRF9150R Datasheet Preview — Preview of FRF9150R PDF

Datasheet Details

Part number:

FRF9150R

Manufacturer:

Intersil

File Size:

49.12 KB

Description:

P-channel power mosfet.
