FRM450D - N-Channel Power MOSFET

FRM450D Description

FRM450D, FRM450R, FRM450H June 1998 10A, 500V, 0.600 Ohm, Rad Hard, N-Channel Power MOSFETs Package TO-204AA .
The Intersil has designed a series of SECOND GENERATION hardened power MOSFETs of both N and P channel enhancement types with ratings from 100V to 500.

FRM450D Features

* 10A, 500V, RDS(on) = 0.600Ω
* Second Generation Rad Hard MOSFET Results From New Design Concepts
* Gamma Meets Pre-Rad Specifications to 100KRAD(Si) Defined End Point Specs at 300KRAD(Si) and 1000KRAD(Si) Performance Permits Limited Use to 3000KRAD(Si) Survives 3E9RAD(Si)/sec

📥 Download Datasheet

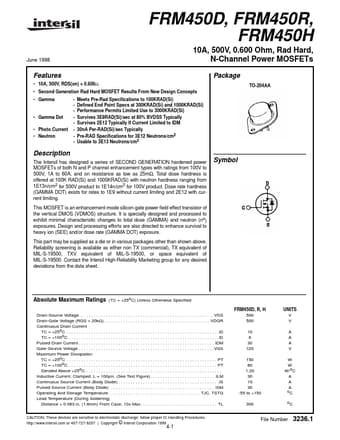

Preview of FRM450D PDF
datasheet Preview Page 2 datasheet Preview Page 3
