HI3-5051-5 - CMOS Analog Switches

Datasheet Summary

Description

Table).

The HI-504X and HI-505X series switches can directly replace IH-5040 series devices, and are functionally compatible with the DG180 and DG190 family.

Features

very low power operation (1.5mW at 25oC). There are 7 devices in this switch series which are differentiated by type of switch action and value of rON (see Functional.

Intersil

📥 Download Datasheet

Datasheet Details

Part number	HI3-5051-5
Manufacturer	Intersil
File Size	165.43 KB
Description	CMOS Analog Switches
Datasheet	HI3-5051-5 Datasheet
Additional preview pages of the HI3-5051-5 datasheet.

📁 Similar Datasheet

HI3-506 - CMOS Analog Multiplexers (Harris)
HI3-506A - CMOS Analog Multiplexers (Harris)
HI3-506L - CMOS Analog Multiplexers (Harris)
HI3-509A - (HI3-506A/HI3-507A/HI3-508A) CMOS Analog Multiplexers (Hrris)
HI3-509A - (HI3-508A) Fault-Protected Analog Multiplexer ()
HI3-509A - (HI3-508A) CMOS Analog Multiplexers (Burr-Brown)
HI3-509A - (HI3-508A) Fault-Protected Analog Multiplexer (Maxim)
HI3-509L - (HI3-508L) Single 8 / Differential 4 Channel CMOS Analog Multiplexers (Harris)
HI3-1818A - Low Resistance / Single 8-Channel and Differential 4-Channel CMOS Analog Multiplexers (Intersil Corporation)
HI3026 - Flash A/D Converter (Intersil Corporation)

Other Datasheets by Intersil

HI3-5043-5 - CMOS Analog Switches

Full PDF Text Transcription

Click to expand full text

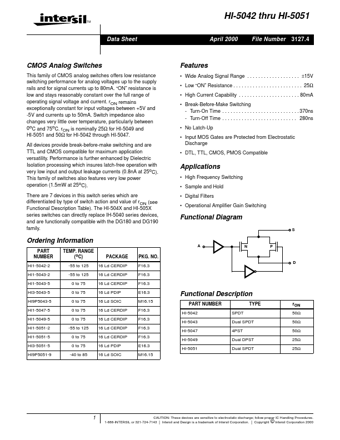

HI-5042 thru HI-5051 TM Data Sheet April 2000 File Number 3127.4 CMOS Analog Switches This family of CMOS analog switches offers low resistance switching performance for analog voltages up to the supply rails and for signal currents up to 80mA. “ON” resistance is low and stays reasonably constant over the full range of operating signal voltage and current. rON remains exceptionally constant for input voltages between +5V and -5V and currents up to 50mA. Switch impedance also changes very little over temperature, particularly between 0oC and 75oC. rON is nominally 25Ω for HI-5049 and HI-5051 and 50Ω for HI-5042 through HI-5047. All devices provide break-before-make switching and are TTL and CMOS compatible for maximum application versatility.
