HI3-1818A - Low Resistance / Single 8-Channel and Differential 4-Channel CMOS Analog Multiplexers

Datasheet Summary

Features

  • Signal Range.
  • . +15V.
  • “ON” Resistance.
  • . . 250Ω.
  • Input Leakage (Max).
  • . . . . .50nA.
  • Access Time.
  • . . . . 350ns.
  • Power Consumption.
  • . . . . .5mW.
  • DTL/TTL Compatible Address.
  • Operation.

📥 Download Datasheet

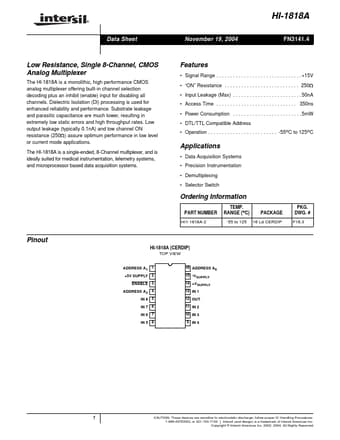

Datasheet preview – HI3-1818A

Datasheet Details

Part number HI3-1818A
Manufacturer Intersil Corporation
File Size 315.51 KB
Description Low Resistance / Single 8-Channel and Differential 4-Channel CMOS Analog Multiplexers
Datasheet download datasheet HI3-1818A Datasheet
Additional preview pages of the HI3-1818A datasheet.

📁 Similar Datasheet

  • HI3-5043-5 - CMOS Analog Switches (Intersil)
  • HI3-5051-5 - CMOS Analog Switches (Intersil)
  • HI3-506 - CMOS Analog Multiplexers (Harris)
  • HI3-506A - CMOS Analog Multiplexers (Harris)
  • HI3-506L - CMOS Analog Multiplexers (Harris)
  • HI3-509A - (HI3-506A/HI3-507A/HI3-508A) CMOS Analog Multiplexers (Hrris)
  • HI3-509A - (HI3-508A) Fault-Protected Analog Multiplexer ()
  • HI3-509A - (HI3-508A) CMOS Analog Multiplexers (Burr-Brown)
  • HI3-509A - (HI3-508A) Fault-Protected Analog Multiplexer (Maxim)
  • HI3-509L - (HI3-508L) Single 8 / Differential 4 Channel CMOS Analog Multiplexers (Harris)
Other Datasheets by Intersil Corporation

Full PDF Text Transcription

Click to expand full text
® HI-1818A Data Sheet November 19, 2004 FN3141.4 Low Resistance, Single 8-Channel, CMOS Analog Multiplexer The Hl-1818A is a monolithic, high performance CMOS analog multiplexer offering built-in channel selection decoding plus an inhibit (enable) input for disabling all channels. Dielectric Isolation (Dl) processing is used for enhanced reliability and performance. Substrate leakage and parasitic capacitance are much lower, resulting in extremely low static errors and high throughput rates. Low output leakage (typically 0.1nA) and low channel ON resistance (250Ω) assure optimum performance in low level or current mode applications.
