IRFR9110 Datasheet - Intersil

IRFR9110 P Channel Power MOSFET

IRFR9110, IRFU9110 Data Sheet July 1999 File Number 4001.3 3.1A, 100V, 1.200 Ohm, P-Channel Power MOSFETs These are advanced power MOSFETs designed, tested, and guaranteed to withstand a specific level of energy in the avalanche breakdown mode of operation. These are P-Channel enhancement mode silicon gate power field-effect transistors designed for applications such as switching regulators, switching converters, motor drivers, relay drivers, and drivers for high power bipolar switching transisto.

IRFR9110 Features

* 3.1A, 100V

* rDS(ON) = 1.200Ω

* Temperature Compensating PSPICE™ Model

* Peak Current vs Pulse Width Curve

* UIS Rating Curve

* Related Literature - TB334 “Guidelines for Soldering Surface Mount Components to PC Boards” Symbol D Ordering Informatio

IRFR9110 Datasheet (62.52 KB)

Preview of IRFR9110 PDF

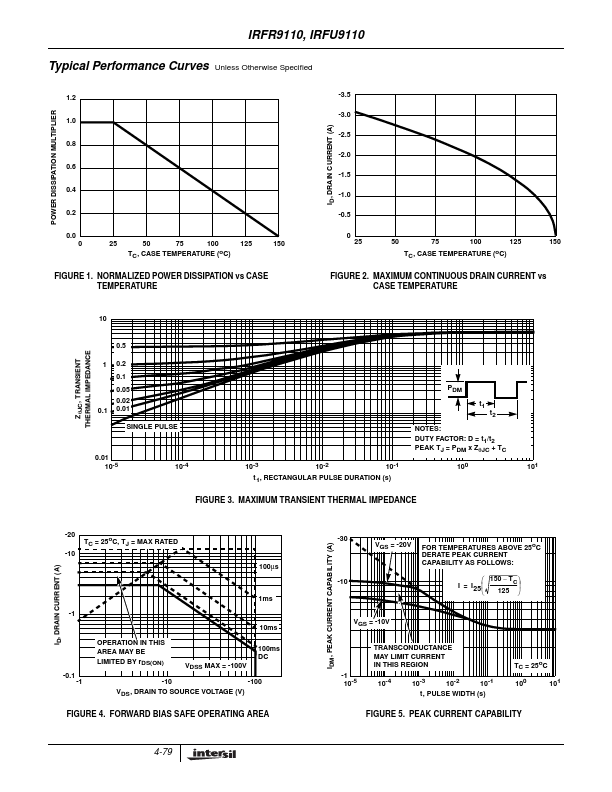

IRFR9110 Datasheet Preview Page 2 IRFR9110 Datasheet Preview Page 3

Datasheet Details

Part number:

IRFR9110

Manufacturer:

Intersil

File Size:

62.52 KB

Description:

P channel power mosfet.
