IRFR9120N, IRFU9120N, Power MOSFET

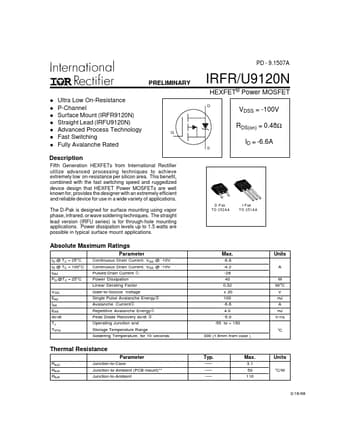

PD - 9.1507A PRELIMINARY l l l l l l l IRFR/U9120N HEXFET® Power MOSFET D Ultra Low On-Resistance P-Channel Surface Mount (IRFR9120N) Straight Lead.
Fifth Generation HEXFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area.

datasheet Preview Page 1 from Datasheet4u.com

IRFU9120N_InternationalRectifier.pdf

IRFR9120N Datasheet Preview — This datasheet PDF includes multiple part numbers: IRFR9120N, IRFU9120N. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IRFR9120N, IRFU9120N

Manufacturer:

International Rectifier

File Size:

117.52 KB

Description:

Power MOSFET

Note:

This datasheet PDF includes multiple part numbers: IRFR9120N, IRFU9120N.
Please refer to the document for exact specifications by model.

Features

* R A IN -B1.52 (.060) 1.15 (.045) 3X 2X 1.14 (.045) 0.76 (.030) 2.28 (.090) 4.57 (.180) 0.89 (.035) 0.64 (.025) 0.25 (.010) M A M B 0.58 (.023) 0.46 (.018) N O TE S : 1 D IM E N S IO N IN G & TO LE R A N C IN G P E R A N S I Y 14.5M , 1982. 2 C O N TR O LLIN G D IM E N S IO N : IN C H . 3 C O N F

Applications

* The D-Pak is designed for surface mounting using vapor phase, infrared, or wave soldering techniques. The straight lead version (IRFU series) is for through-hole mounting applications. Power dissipation levels up to 1.5 watts are possible in typical surface mount applications. D -P ak T O -2 52 A A
