IRFR9024 - P-Channel MOSFET

Datasheet Summary

Description

This P-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers.

These MOSFETs feature faster switching and lower gate charge than other MOSFETs with comparable RDS(ON) specifications.

Features

  • • -8.8 A, -60 V. RDS(ON) = 0.28 Ω @ VGS = -10 V • Low gate charge. • Fast switching speed. • High performance technology for low RDS(ON). '.
  • 6 72 $.

📥 Download Datasheet

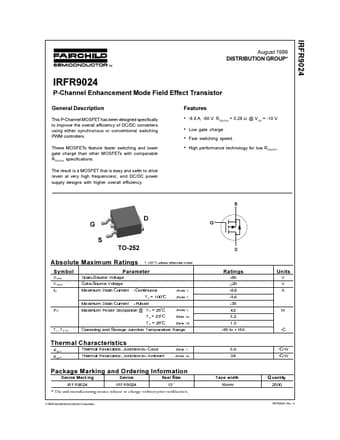

Datasheet preview – IRFR9024

Datasheet Details

Part number IRFR9024
Manufacturer Fairchild Semiconductor
File Size 329.32 KB
Description P-Channel MOSFET
Datasheet download datasheet IRFR9024 Datasheet
Additional preview pages of the IRFR9024 datasheet.

📁 Similar Datasheet

Other Datasheets by Fairchild Semiconductor

Full PDF Text Transcription

Click to expand full text
IRFR9024 August 1999 DISTRIBUTION GROUP* IRFR9024 P-Channel Enhancement Mode Field Effect Transistor General Description This P-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. These MOSFETs feature faster switching and lower gate charge than other MOSFETs with comparable RDS(ON) specifications. The result is a MOSFET that is easy and safer to drive (even at very high frequencies), and DC/DC power supply designs with higher overall efficiency. Features • -8.8 A, -60 V. RDS(ON) = 0.28 Ω @ VGS = -10 V • Low gate charge. • Fast switching speed. • High performance technology for low RDS(ON).
