IRFR014A - ADVANCED POWER MOSFET

Product Overview

Fairchild Semiconductor

📥 Download Datasheet

IRFR014A ADVANCED POWER MOSFET by Fairchild Semiconductor - Datasheet Preview — Datasheet preview – IRFR014A

Datasheet Details

Part number	IRFR014A
Manufacturer	Fairchild Semiconductor
File Size	244.23 KB
Description	ADVANCED POWER MOSFET
Datasheet	IRFR014A Datasheet

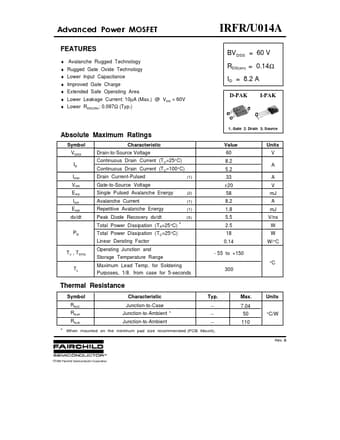

Additional preview pages of the IRFR014A datasheet.

Product details

Features

Avalanche Rugged Technology.
Rugged Gate Oxide Technology.
Lower Input Capacitance.
Improved Gate Charge.
Extended Safe Operating Area.
Lower Leakage Current: 10µA (Max. ) @ VDS = 60V.
Lower RDS(ON): 0.097Ω (Typ. ) IRFR/U014A BVDSS = 60 V RDS(on) = 0.14Ω ID = 8.2 A D-PAK 2 1 3 1 I-PAK 2 3 1. Gate 2. Drain 3. Source Absolute Maximum Ratings Symbol VDSS ID IDM VGS EAS IAR EAR dv/dt PD Characteristic Drain-to-Source Voltage Continu.
