Datasheet Details
| Part number | ISL3282EMRTEP |
|---|---|
| Manufacturer | Intersil (now Renesas) |
| File Size | 482.10 KB |
| Description | RS-485/422 Receiver |
| Datasheet | ISL3282EMRTEP-Intersil.pdf |
|
|

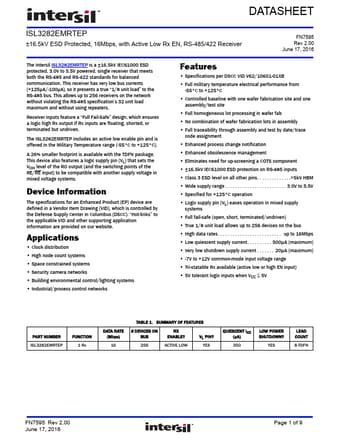

Overview: DATASHEET ±16.5kV ESD Protected, 16Mbps, with Active Low Rx EN, RS-485/422 Receiver ISL3282EMRTEP The Intersil ISL3282EMRTEP is a ±16.5kV IEC61000 ESD protected, 3.0V to 5.5V powered, single receiver that meets both the RS-485 and RS-422 standards for balanced communication. This receiver has very low bus currents (+125µA/-100µA), so it presents a true “1/8 unit load” to the RS-485 bus. This allows up to 256 receivers on the network without violating the RS-485 specification’s 32 unit load maximum and without using repeaters. Receiver inputs feature a “Full Fail-Safe” design, which ensures a logic high Rx output if Rx inputs are floating, shorted, or terminated but undriven. The ISL3282EMRTEP includes an active low enable pin and is offered in the Military Temperature range (-55°C to +125°C). A 26% smaller footprint is available with the TDFN package.
| Part number | ISL3282EMRTEP |
|---|---|
| Manufacturer | Intersil (now Renesas) |
| File Size | 482.10 KB |
| Description | RS-485/422 Receiver |
| Datasheet | ISL3282EMRTEP-Intersil.pdf |
|
|
|
