ISL8483 - RS-485/RS-422 Transceivers

Product Overview

Intersil

📥 Download Datasheet

ISL8483 RS-485/RS-422 Transceivers by Intersil - Datasheet Preview — Datasheet preview – ISL8483

Datasheet Details

Part number	ISL8483
Manufacturer	Intersil
File Size	567.73 KB
Description	RS-485/RS-422 Transceivers
Datasheet	ISL8483 Datasheet

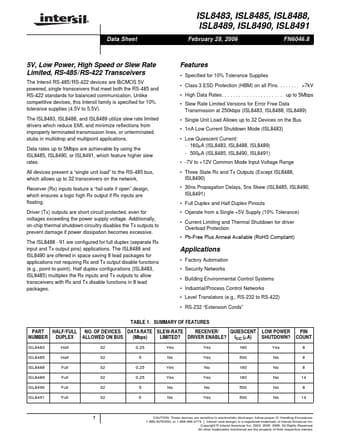

Additional preview pages of the ISL8483 datasheet.

Product details

Features

Specified for 10% Tolerance Supplies.
Class 3 ESD Protection (HBM) on all Pins.
. . . >7kV.
High Data Rates.
. . up to 5Mbps.
Slew Rate Limited Versions for Error Free Data Transmission at 250kbps (ISL8483, ISL8488, ISL8489).
Single Unit Load Allows up to 32 Devices on the Bus.
1nA Low Current Shutdown Mode (ISL8483).
Low Quiescent Current: - 160µA (ISL8483, ISL8488, ISL8489) - 500µA (ISL8485.
