ISL8484 Datasheet - Renesas

Dual SPDT Analog Switch

ISL8484 Features

* AT A GLANCE ISL8484 NUMBER OF SWITCHES 2 SW SPDT or 2-1 MUX 4.3V rON 4.3V tON/tOFF 3V rON 3V tON/tOFF 1.8V rON 1.8V tON/tOFF Packages 0.29 40ns/20ns 0.33 50ns/27ns 0.55 70ns/54ns 10 Ld 3x3 Thin DFN, 10 Ld MSOP Features

* Pin Compatible Replacement for the MAX4684 and MAX4685

ISL8484 General Description

PIN FUNCTION V+ System Power Supply Input (+1.65V to +4.5V) GND Ground Connection INx Digital Control Input COMx Analog Switch Common Pin NOx Analog Switch Normally Open Pin NCx Analog Switch Normally Closed Pin Ordering Information PART NUMBER PART MARKING TEMP. RANGE (°C) PACKAGE PK.

ISL8484 Datasheet (653.40 KB)

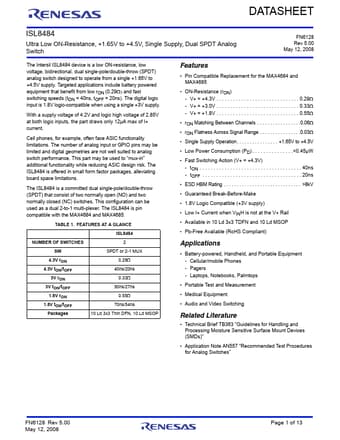

ISL8484 Datasheet Preview — Preview of ISL8484 PDF

Datasheet Details

Part number:

ISL8484

Manufacturer:

Renesas ↗

File Size:

653.40 KB

Description:

Dual spdt analog switch.
DATASHEET ISL8484 Ultra Low ON-Resistance, +1.65V to +4.5V, Single Supply, Dual SPDT Analog Switch FN6128 Rev 5.00 May 12, 2008 The Intersil ISL848.
