RT2N62M - COMPOUND TRANSISTOR

Product Overview

📥 Download Datasheet

Datasheet preview – RT2N62M

Datasheet Details

Part number RT2N62M
Manufacturer Isahaya Electronics Corporation
File Size 161.48 KB
Description COMPOUND TRANSISTOR
Datasheet download datasheet RT2N62M Datasheet
Additional preview pages of the RT2N62M datasheet.

Product details

Description

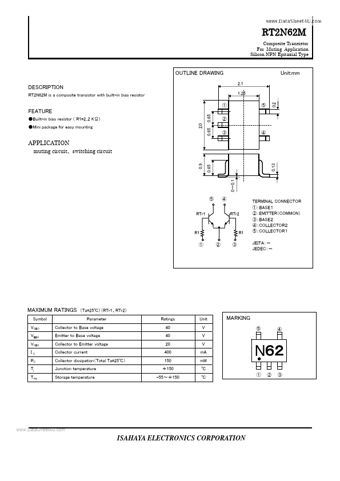

RT2N62M is a composite transistor with built-in bias resistor ① 2.1 1.25 ⑤ 0.2 0.13 ④ RTr2 0～0.1 R1 ② ③ Unit:mm FEATURE 0.65 2.0 0.65 Built-in bias resistor ( R1=2..2 KΩ) Mini package for easy mounting ② ③ ④ APPLICATION muting circuit、switching circuit 0.9 0.65 ⑤ RTr1 R1 ① TERMINAL CONNECTOR ①：BASE１ ②：EMITTER（COMMON） ③：BASE２ ④：COLLECTOR２ ⑤：COLLECTOR１ JEITA：－ JEDEC：－ MAXIMUM RATINGS Symbol VCBO VEBO VCEO I C （Ta=25℃）（RTr1、RTr2） Parameter Ratings 40 40 20 400 150 ＋150 -55～＋150 Uni
