2CZ4004 RECTIFICATION DIODE

2CZ4004 Description

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD SOD-123 Plastic-Encapsulate Diodes 2CZ4004 RECTIFICATION DIODE .

2CZ4004 Features

* Low Leakage Current

2CZ4004 Applications

* MARKING:Z44 Z44 Z44 The marking bar indicates the cathode Solid dot = Green molding compound device, if none,the normal device. SOD-123 MAXIMUM RATINGS (Ta=25℃ unless otherwise noted) Symbol VRM VR VR(RMS) IO IFSM PD RθJA TJ Tstg Parameter Non-repetitive peak reverse voltage Reverse Voltage R

📥 Download Datasheet

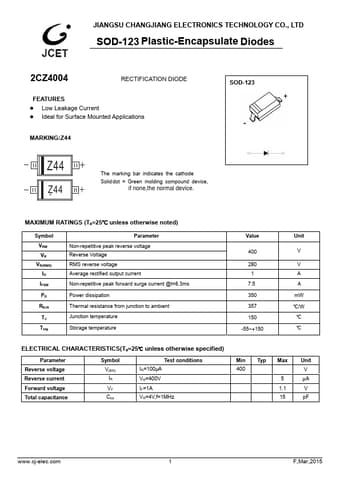

Preview of 2CZ4004 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2CZ4004
Manufacturer
JCET
File Size
761.68 KB
Datasheet
2CZ4004-JCET.pdf
Description
RECTIFICATION DIODE
