2SA1980 PNP Transistor

2SA1980 Description

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD TO-92 Plastic-Encapsulate Transistors 2SA1980 TRANSISTOR (PNP) .

2SA1980 Features

* z Low collector saturation voltage: VCE(sat) =-0.3V(Max. ) z Low output capacitance : Cob =4pF (Typ. ) z Complementary pair with 2SC5343 TO-92 1. EMITTER 2. COLLECTOR 3. BASE MAXIMUM RATINGS (TA=25℃ unless otherwise noted) Symbol Parameter Value VCBO Collector-Base Voltage -50 VCEO Collector

📥 Download Datasheet

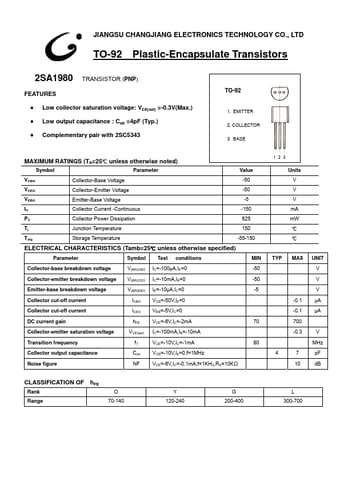

Preview of 2SA1980 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SA1980
Manufacturer
JCET
File Size
118.35 KB
Datasheet
2SA1980-JCET.pdf
Description
PNP Transistor
