2SA1980M - PNP Silicon Transistor

2SA1980M Description

? Semiconductor 2SA1980M PNP Silicon Transistor .
General small signal amplifier Features. Low collector saturation voltage : VCE(sat)=-0. Low output capacitance.

2SA1980M Features

* Low collector saturation voltage : VCE(sat)=-0.3V(Max. )
* Low output capacitance : Cob=4pF(Typ. )
* Complementary pair with 2SC5343M Ordering Information Type NO. 2SA1980M Marking 1980 Package Code TO-92M Outline Dimensions 3.9~4.1 2.9~3.1 unit : mm 0.44 REF 0.52 REF

📥 Download Datasheet

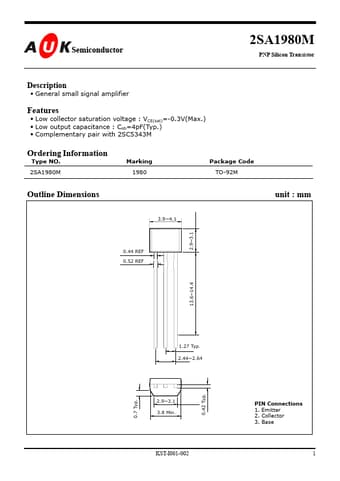

Preview of 2SA1980M PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SA1980M
Manufacturer
AUK corp
File Size
223.73 KB
Datasheet
2SA1980M_AUKcorp.pdf
Description
PNP Silicon Transistor
