2SA1980SF - PNP Silicon Transistor

2SA1980SF Description

Semiconductor 2SA1980SF PNP Silicon Transistor .
General small signal amplifier Features. Low collector saturation voltage : VCE(sat)=-0. Low output capacitance.

2SA1980SF Features

* Low collector saturation voltage : VCE(sat)=-0.3V(Max. )
* Low output capacitance : Cob=4pF(Typ. )
* Complementary pair with 2SC5343SF Ordering Information Type NO. 2SA1980SF Marking CA : hFE rank Package Code SOT-23F Outline Dimensions 2.3~2.5 1.5~1.7 unit : mm 1 1.90 BS

📥 Download Datasheet

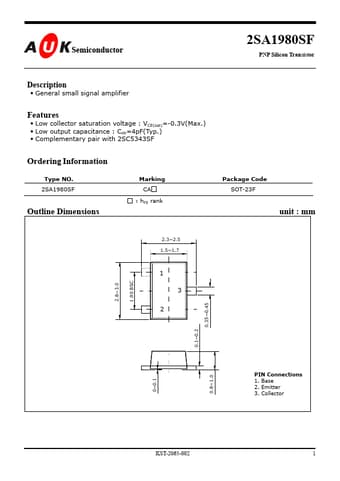

Preview of 2SA1980SF PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SA1980SF
Manufacturer
AUK corp
File Size
223.84 KB
Datasheet
2SA1980SF_AUKcorp.pdf
Description
PNP Silicon Transistor
