2SA1980U - PNP Silicon Transistor

Product Overview

AUK corp

Part number	2SA1980U
Manufacturer	AUK corp
File Size	225.21 KB
Description	PNP Silicon Transistor
Datasheet	2SA1980U Datasheet

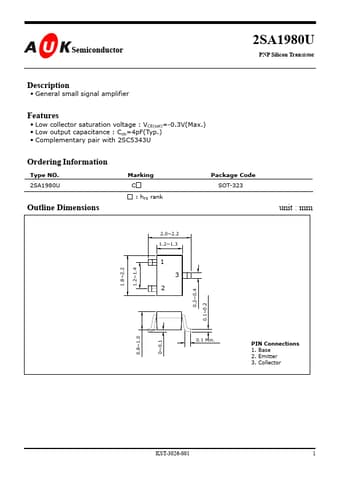

Additional preview pages of the 2SA1980U datasheet.

General small signal amplifier

Low collector saturation voltage : VCE(sat)=-0.3V(Max. ).
Low output capacitance : Cob=4pF(Typ. ).
Complementary pair with 2SC5343U Ordering Information Type NO. 2SA1980U Marking C : hFE rank Package Code SOT-323 Outline Dimensions 2.0~2.2 1.2~1.3 unit : mm 1 1.8~2.2 1.2~1.4 3 0.2~0.4 2 0.8~1.0 0~0.1 0.1 Min. 0.1~0.2 PIN Connections 1. Base 2. Emitter 3. Collector KST-3026-001 1 2SA1980U Absolute maximum ratings Characteristic Collector-Base voltage Collec.
