DTA114YM - PNP Digital Transistor

Features

  • Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors(see equivalent circuit).
  • The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input. They also have the advantage of almost completely eliminating parasitic effects.
  • Only the on/off conditions need to be set for operation, making device design easy PIN.

📥 Download Datasheet

Datasheet preview – DTA114YM

Datasheet Details

Part number DTA114YM
Manufacturer JCET
File Size 286.64 KB
Description PNP Digital Transistor
Datasheet download datasheet DTA114YM Datasheet
Additional preview pages of the DTA114YM datasheet.

📁 Similar Datasheet

  • DTA114YM - PNP -100mA -50V Digital Transistors (Rohm)
  • DTA114YM - PNP Digital Transistor (Taiwan Semiconductor)
  • DTA114YM3 - Digital Transistors (ON Semiconductor)
  • DTA114YM3T5G - Digital Transistor (ON Semiconductor)
  • DTA114YMFHA - PNP Digital Transistor (ROHM)
  • DTA114Y - PNP SILICON BIAS RESISTOR TRANSISTOR (ON Semiconductor)
  • DTA114Y - PNP DIGITAL TRANSISTOR (UTC)
  • DTA114Y - PNP -100mA -50V Digital Transistors (Rohm)
  • DTA114YC3 - PNP Digital Transistors (CYStech Electronics)
  • DTA114YCA - Digital Transistors (MCC)
Other Datasheets by JCET

Full PDF Text Transcription

Click to expand full text

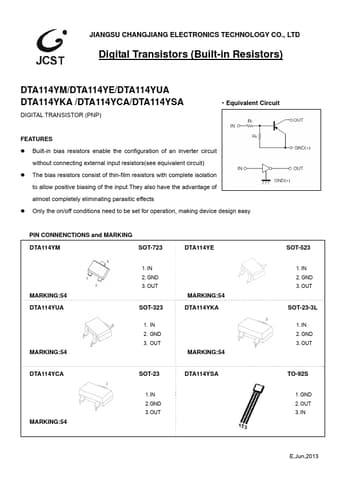

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD Digital Transistors (Built-in Resistors) DTA114YM/DTA114YE/DTA114YUA DTA114YKA /DTA114YCA/DTA114YSA DIGITAL TRANSISTOR (PNP) ·Equivalent Circuit FEATURES  Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors(see equivalent circuit)  The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input.They also have the advantage of almost completely eliminating parasitic effects  Only the on/off conditions need to be set for operation, making device design easy PIN CONNENCTIONS and MARKING DTA114YM SOT-723 MARKING:54 DTA114YUA MARKING:54 1. IN 2. GND 3. OUT SOT-323 1. IN 2. GND 3. OUT DTA114YCA MARKING:54 SOT-23 1.IN 2.
