DTA114YM3 - Digital Transistors

onsemi

Download the DTA114YM3 datasheet PDF. This datasheet also covers the DTA114YE variant, as both devices belong to the same digital transistors family and are provided as variant models within a single manufacturer datasheet.

Key Features

Simplifies Circuit Design.
Reduces Board Space.
Reduces Component Count.
S and NSV Prefix for Automotive and Other.

📥 Download Datasheet

DTA114YM3 digital transistors by onsemi - Datasheet Preview — Note: The manufacturer provides a single datasheet file (DTA114YE-ONSemiconductor.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	DTA114YM3
Manufacturer	onsemi
File Size	159.45 KB
Description	Digital Transistors
Datasheet	DTA114YM3 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
DTA114YM	PNP Digital Transistor	JCET
DTA114YM	PNP -100mA -50V Digital Transistors	Rohm
DTA114YM	PNP Digital Transistor	Taiwan Semiconductor
DTA114YMFHA	PNP Digital Transistor	ROHM
DTA114Y	PNP DIGITAL TRANSISTOR	UTC

Other Datasheets by onsemi

Part Number	Description
DTA114YM3T5G	Digital Transistor
DTA114Y	PNP SILICON BIAS RESISTOR TRANSISTOR
DTA114YE	Digital Transistors
DTA114YET1	Bias Resistor Transistor
DTA114E	PNP SILICON BIAS RESISTOR TRANSISTOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

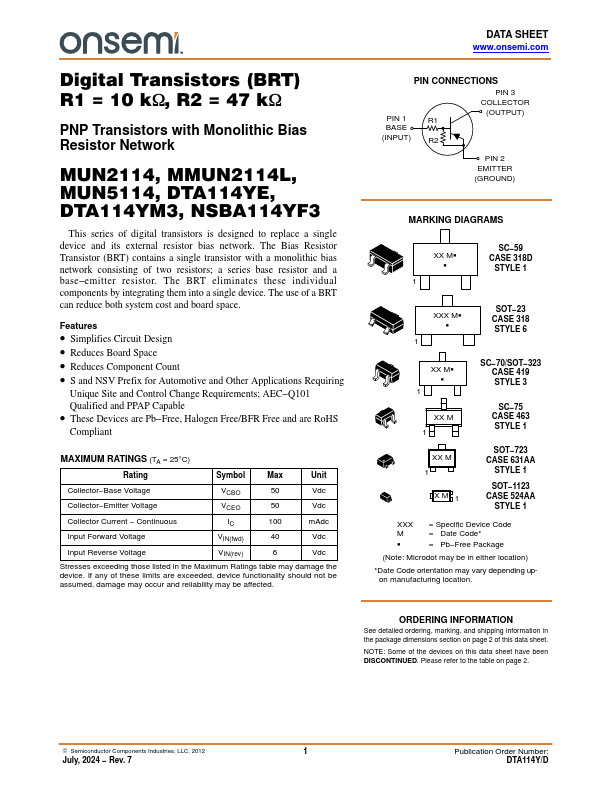

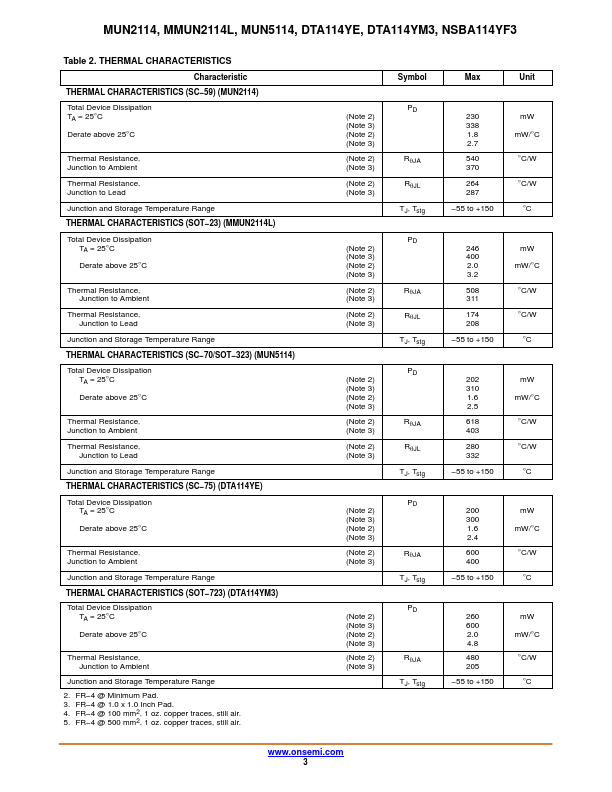

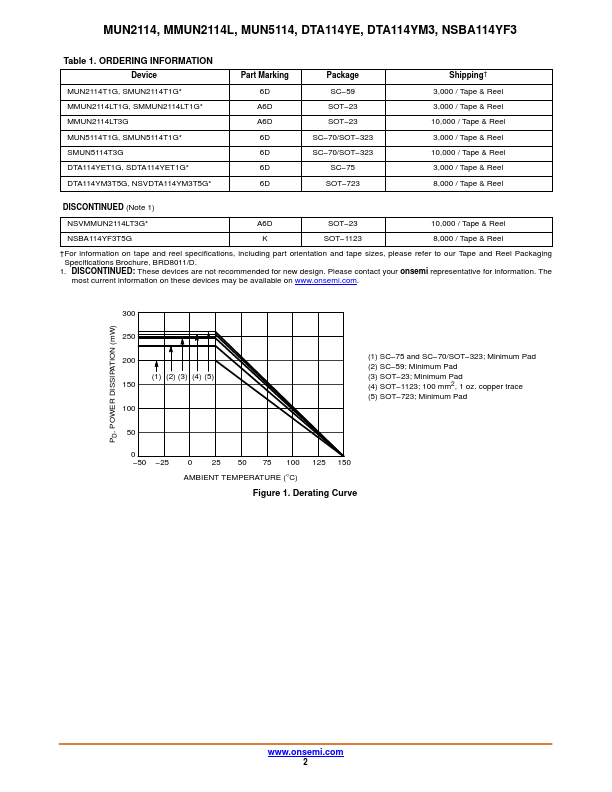

MUN2114, MMUN2114L, MUN5114, DTA114YE, DTA114YM3, NSBA114YF3 Digital Transistors (BRT) R1 = 10 kW, R2 = 47 kW PNP Transistors with Monolithic Bias Resistor Network This series of digital transistors is designed to replace a single device and its external resistor bias network. The Bias Resistor Transistor (BRT) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base−emitter resistor. The BRT eliminates these individual components by integrating them into a single device. The use of a BRT can reduce both system cost and board space.
