Datasheet Details
| Part number | DTA114TE |
|---|---|
| Manufacturer | onsemi |
| File Size | 142.04 KB |
| Description | Digital Transistors |
| Datasheet | DTA114TE-ONSemiconductor.pdf |
|
|

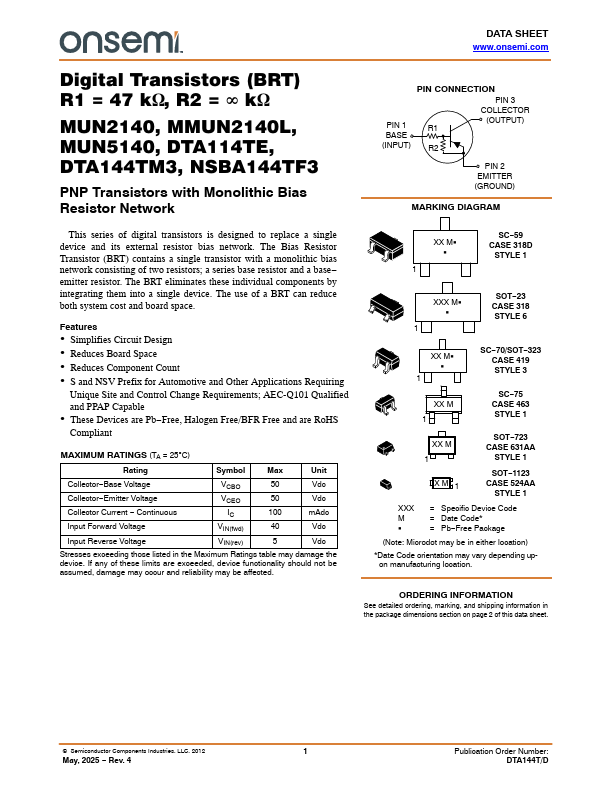

Overview: MUN2140, MMUN2140L, MUN5140, DTA114TE, DTA144TM3, NSBA144TF3 Digital Transistors (BRT) R1 = 47 kW, R2 = 8 kW PNP Transistors with Monolithic Bias Resistor Network This series of digital transistors is designed to replace a single device and its external resistor bias network. The Bias Resistor Transistor (BRT) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base− emitter resistor. The BRT eliminates these individual components by integrating them into a single device. The use of a BRT can reduce both system cost and board space.
| Part number | DTA114TE |
|---|---|
| Manufacturer | onsemi |
| File Size | 142.04 KB |
| Description | Digital Transistors |
| Datasheet | DTA114TE-ONSemiconductor.pdf |
|
|
|
