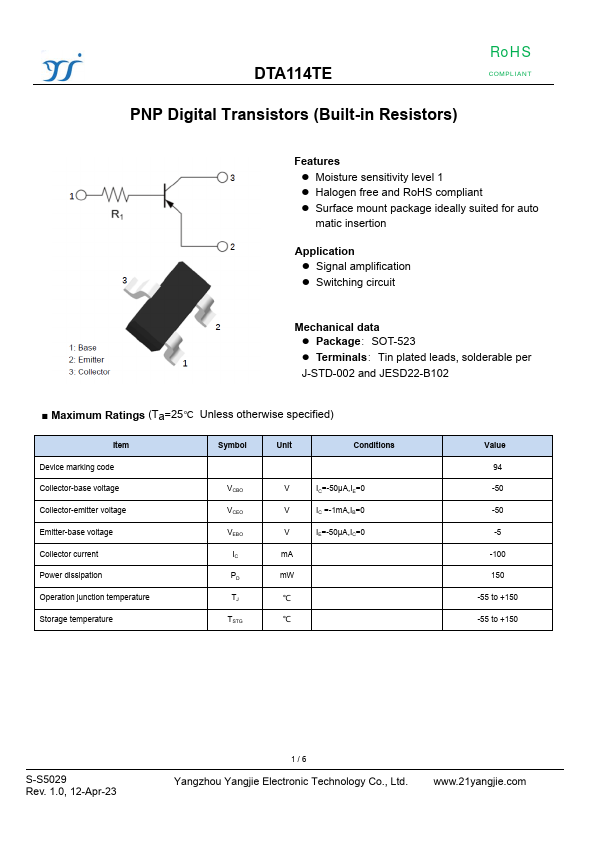

DTA114TE
DTA114TE is manufactured by Yangjie Electronic.
DTA114TE PNP Digital Transistors (Built-in Resistors)
RoHS
PLIANT
Features
- Moisture sensitivity level 1
- Halogen free and RoHS pliant
- Surface mount package ideally suited for auto matic insertion
Application
- Signal amplification
- Switching circuit
Mechanical data
- Package：SOT-523
- Terminals：Tin plated leads, solderable per J-STD-002 and JESD22-B102
- Maximum Ratings (Ta=25℃ Unless otherwise specified)
Item Device marking code Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Power dissipation Operation junction temperature Storage temperature
Symbol
Unit
Conditions
VCBO VCEO VEBO
IC PD TJ TSTG
IC=-50μA,IE=0
IC...
