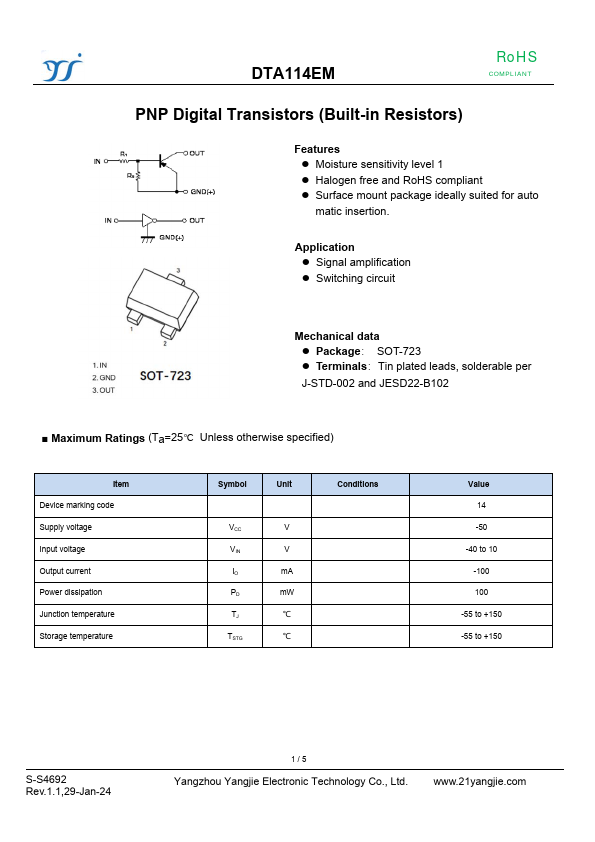

PNP Digital Transistors (Built-in Resistors)
Features
- Moisture sensitivity level 1
- Halogen free and RoHS pliant
- Surface mount package ideally suited for auto matic insertion.
Application
- Signal amplification
- Switching circuit
Mechanical data
- Package： SOT-723
- Terminals：Tin plated leads, solderable per J-STD-002 and JESD22-B102
- Maximum Ratings (Ta=25℃ Unless otherwise specified)
Item Device marking code Supply voltage Input voltage Output current Power dissipation Junction temperature Storage temperature
Symbol
Unit
VCC VIN IO PD TJ TSTG
V V mA mW ℃ ℃
Conditions
Value 14 -50
-40 to 10 -100 100
-55 to +150 -55 to +150
S-S4692...
