Datasheet Summary

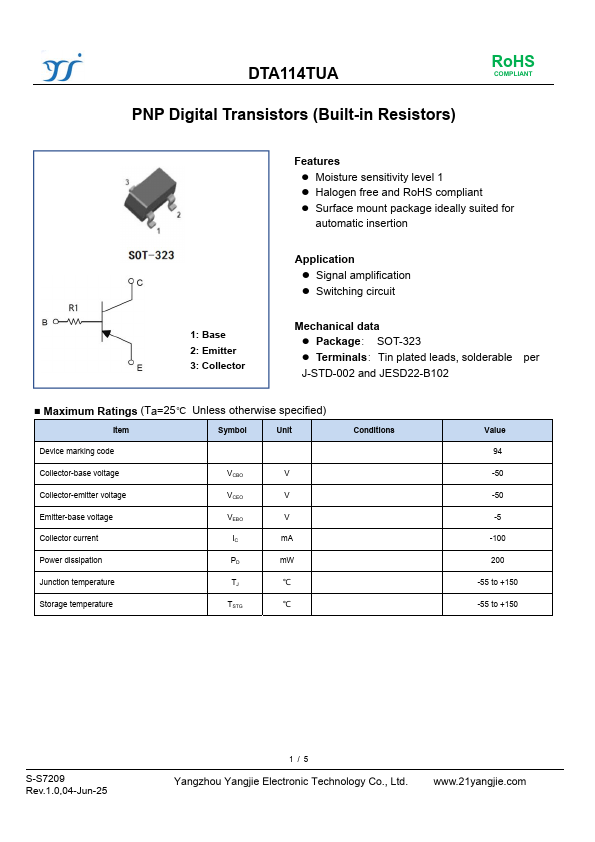

DTA114TUA PNP Digital Transistors (Built-in Resistors)
RoHS
PLIANT
Features
- Moisture sensitivity level 1
- Halogen free and RoHS pliant
- Surface mount package ideally suited for automatic insertion
Application
- Signal amplification
- Switching circuit
1: Base 2: Emitter 3: Collector
Mechanical data
- Package： SOT-323
- Terminals：Tin plated leads, solderable per J-STD-002 and JESD22-B102
- Maximum Ratings (Ta=25℃ Unless otherwise specified)
Item
Symbol
Unit
Device marking code
Collector-base voltage
VCBO
Collector-emitter voltage
VCEO
Emitter-base voltage
VEBO
Collector current
IC mA
Power dissipation
PD mW
Junction...
