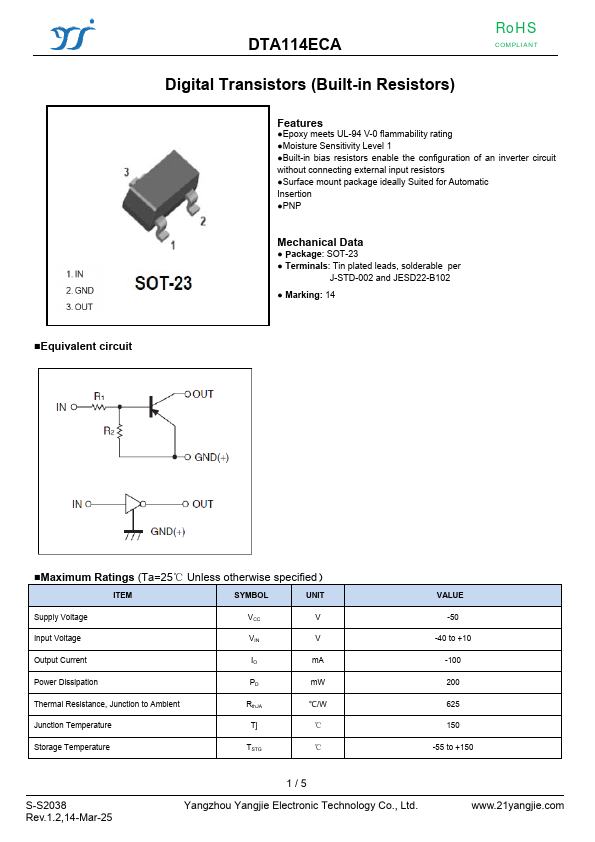

Datasheet Summary
DTA114ECA Digital Transistors (Built-in Resistors)
RoHS
PLIANT
Features
- Epoxy meets UL-94 V-0 flammability rating
- Moisture Sensitivity Level 1
- Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors
- Surface mount package ideally Suited for Automatic Insertion
- PNP
Mechanical Data
- Package: SOT-23
- Terminals: Tin plated leads, solderable per
J-STD-002 and JESD22-B102
- Marking: 14
- Equivalent circuit
- Maximum Ratings (Ta=25℃ Unless otherwise specified）
ITEM
SYMBOL
UNIT
Supply Voltage
Input Voltage
Output Current
IO mA
Power Dissipation
PD mW
Thermal Resistance, Junction to Ambient
RthJA
℃/W...
