DTA114ECA - Digital Transistor

Galaxy Microelectronics

Key Features

Pb.
Epitaxial planar die construction. Lead-free.
Complementary NPN types available(DTC).
Built-in biasing resistors,R1=R2.
Also available in lead free version.

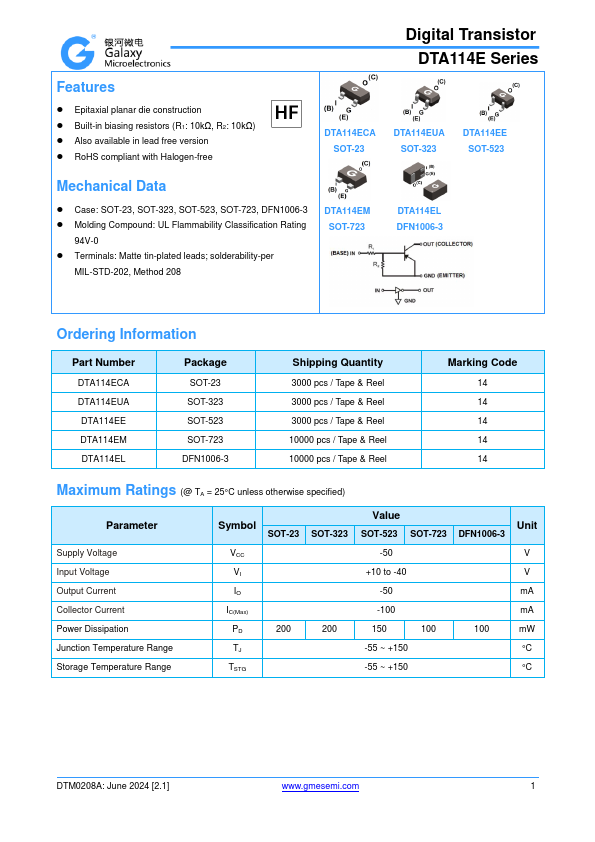

DTA114ECA digital transistor by Galaxy Microelectronics - Datasheet Preview

Datasheet Details

Part number	DTA114ECA
Manufacturer	Galaxy Microelectronics
File Size	201.01 KB
Description	Digital Transistor
Datasheet	DTA114ECA Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
DTA114ECA	PNP Digital Transistor	JCET
DTA114ECA	BIAS RESISTOR TRANSISTOR	AiT Semiconductor
DTA114ECA	PNP Digital Transistors	SeCoS
DTA114ECA	Digital transistors	Rohm
DTA114ECA	PNP Digital Transistor	Taiwan Semiconductor

Other Datasheets by Galaxy Microelectronics

Part Number	Description
DTA114EUA	Digital Transistor
DTA114TCA	Digital Transistor
DTA114TE	Digital Transistor
DTA114TUA	Digital Transistor
DTA124ECA	Digital Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

Production specification Digital Transistor DTA(R1=R2 SERIES)CA FEATURES Pb  Epitaxial planar die construction. Lead-free  Complementary NPN types available(DTC).  Built-in biasing resistors,R1=R2.  Also available in lead free version. APPLICATIONS  The PNP style digital transistor. ORDERING INFORMATION Type No. Marking DTA114ECA DTA124ECA DTA143ECA DTA144ECA 14 15 13 16 SOT-23 Package Code SOT-23 SOT-23 SOT-23 SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter VCC Supply Voltage Input Voltage VIN Output Current IO DTA114ECA DTA124ECA DTA143ECA DTA144ECA DTA114ECA DTA124ECA DTA143ECA DTA144ECA IC(Max.
