DTA114ECA Datasheet PDF

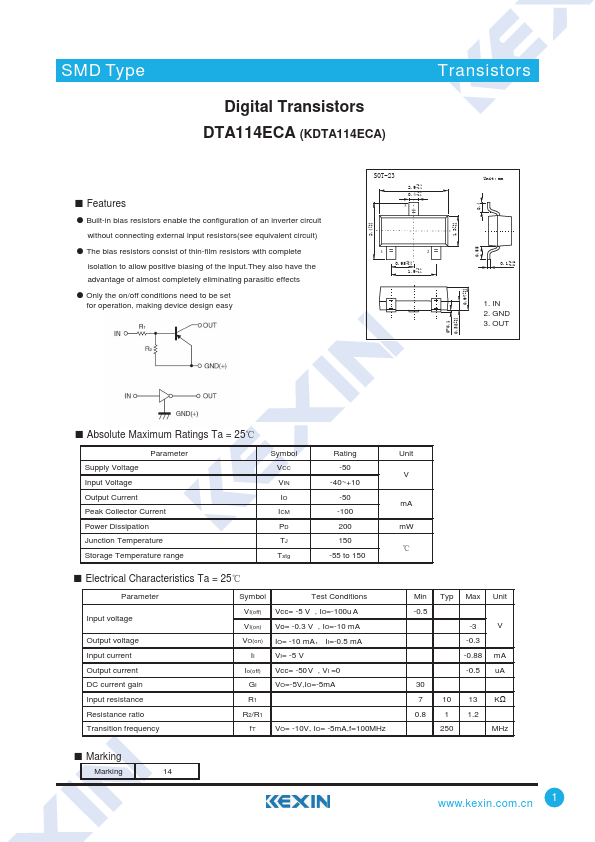

FEATURES

ƽ Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors(see equivalent circuit) ƽ The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input.They also have the advantage of almost completely eliminating parasitic effects ƽ Only the on/off conditions need to be set for operation, making device design easy 627 3 1 2 8QLW PP 1. IN 2. GND 3. OUT Ƶ

ABSOLUTE MAXIMUM RATINGS

Ta = 25ć Parameter Supply Voltage Input Voltage Output Current Peak Collector Current Power Dissipation Junction Temperature Storage Temperature range Symbol Rating Unit VCC -50 V VIN -40~+10 IO -50 mA ICM -100 PD 200 mW TJ 150 ć Tstg -55 to 150 Ƶ

ELECTRICAL CHARACTERISTICS

Ta = 25ć Parameter Input voltage Output voltage Input current Output current DC current gain Input resistance Resistance ratio Transition frequency Symbol Test Conditions VI(off) Vcc= -5 V , IO=-100u A VI(on) Vo= -0.3 V , IO=-10 mA VO(on) IO= -10 mAˈ II=-0.5 mA II VI= -5 V Io(off) Vcc= -50 V , VI =0 GI VO=-5V,IO=-5mA R1 R2/R1 fT VO= -10V, IO= -5mA,f=100MHz Min Typ Max Unit -0.
