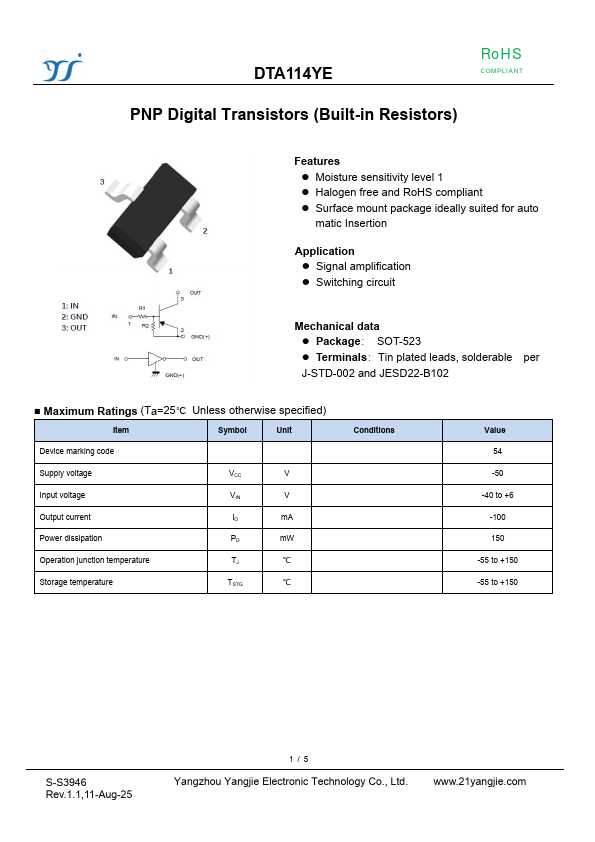

DTA114YE
DTA114YE is PNP Digital Transistors manufactured by Yangjie Electronic.
Features
- Moisture sensitivity level 1
- Halogen free and Ro HS pliant
- Surface mount package ideally suited for auto matic Insertion
Application
- Signal amplification
- Switching circuit
Mechanical data
- Package： SOT-523
- Terminals：Tin plated leads, solderable per J-STD-002 and JESD22-B102
- Maximum Ratings (Ta=25℃ Unless otherwise specified)
Item
Symbol
Unit
Device marking code
Supply voltage
Input voltage
Output current
IO m A
Power dissipation
PD m W
Operation junction temperature
℃
Storage temperature
TSTG
℃
Conditions
Value 54 -50
-40 to +6 -100 150
-55 to +150 -55 to +150
S-S3946 Rev.1.1,11-Aug-25
1/5
Yangzhou Yangjie Electronic Technology Co., Ltd.
.21yangjie.

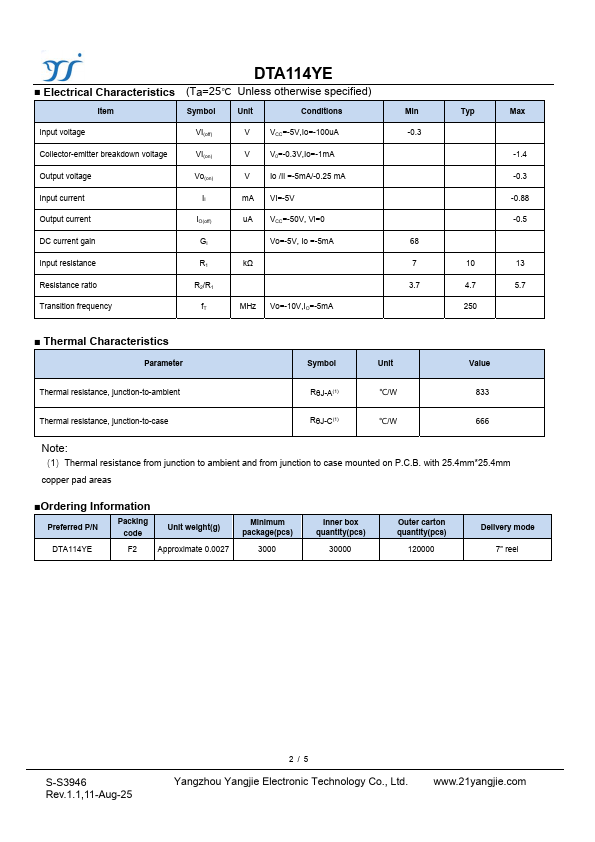

- Electrical Characteristics (Ta=25℃ Unless otherwise...
